4.3 Inch Integrated HMI PLC Combo RS232 HMI Touch Screen PLC Programmable Logic Controller
| Place of Origin | China |
|---|---|
| Brand Name | Coolmay |
| Certification | CE |
| Model Number | QM3G-43FH-24MT-485P |
| Minimum Order Quantity | 1 peice |
| Price | USD 90~148 per peice |
| Packaging Details | Carton Box |
| Delivery Time | 3-7 working days after payment done |
| Payment Terms | T/T, Western Union, MoneyGram, PayPal, Alipay |
| Supply Ability | 2000 pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3",4.3inch | I/O Level | NPN/PNP |
|---|---|---|---|
| COM | Rs232, Rs485 | Protocol | Modbus RTU/TCP(Optional) |
| Power | DC 24V | Capacity | 32K Steps |
| High Light | Integrated HMI PLC Combo,Integrated HMI Touch Screen PLC,RS232 HMI Touch Screen PLC |
||
Product Description

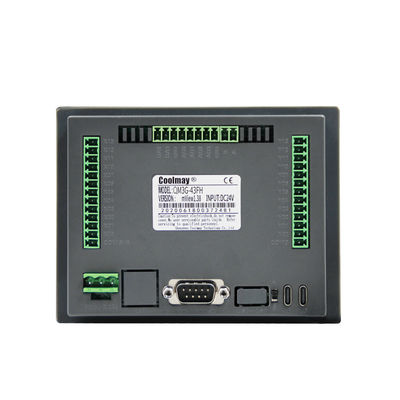

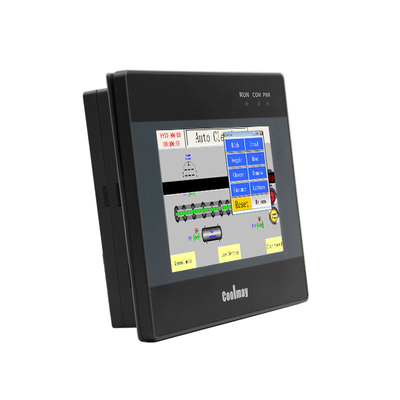

4.3 Inch Integrated HMI PLC Combo Rs232 HMI Touch Screen plc programmable logic controller
Model: QM3G-43FH-24MT-485P
- 4.3inch touch screen
- Resolution:480*272
- 12DI/12DO transistor output
- 1AD: one analog input PT100/RTD
- A custmoized rs485 in PLC
- A default rs232 in PLC
Packing:
1. one piece HMI/PLC all in one
2. a set of programming cable
3. testing report
| Model | QM3G-43FH | QM3G-50FH | QM3G-70FH | QM3G-70KFH | QM3G-100FH | |
| Dimension | 134*102*34mm | 151*96*36mm | 200*146*36mm | 226*163*35.6mm | 275*194*36mm | |
| Cutout size | 120*94mm | 143*86mm | 192*138mm | 217*154mm | 262*180mm | |
| Power Consumption | 4-6W | 5-7W | 6-7W | 6-7W | 6-8W | |
| HMI | ||||||
| Feature | 60K-color resistive touch screen, supports portrait display | |||||
| Type | 4.3"TFT | 5"TFT | 7.0"TFT | 7.0"TFT | 10.1"TFT | |
| Display size | 97*56mm | 108*65mm | 154*87mm | 154*87mm | 222*125mm | |
Resolution (pixels) | 480*272 | 800*480 | Standard: 800*480 Optional: 1024*600 (Model: QM3G-70HD) | 800*480 | 1024*600 | |
| RAM | 64MB | |||||
| ROM | NOR Flash 8MB | NOR Flash 16MB | ||||
| CPU | 32bit CPU 408MHz | |||||
| Default | Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port | Type-B HMI download port (can download PLC program through the USB penetrating function), RS232 | ||||
| Optional COM port | / | 1 RS485 (changed from default RS232) | ||||
| Software | Coolmay mView HMI Programming Software | |||||
| PLC | ||||||
| I/O | Max 12DI/12DO | Max 24DI/20DO (max 16MR) | Max 30DI/30DO (max 28MR) | |||
| I/O level | Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact | |||||
| DO type and load | Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. | Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) MOS tube: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM; MR: 2A/point, 4A/4 points COM, 5A/12 points COM. | ||||
| High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz | |||||
| High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz | |||||
| Default programming port | 1 TYPE-C, 1 RS232 | 1 Mini USB, 1 RS232 | ||||
| Optional COM port | 1 Rs485 or 2 Rs485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) | 1 RS485 or 2 RS485 COM ports (RS485 port on HMI and RS232 on PLC will be unavailable) | 1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port) | |||
| CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port) | ||||||
Analog I/O (optional) | Max 4AI/2AO | Max 12AI/8AO | Max 16AI/8AO | |||
| AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed | |||||
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2AO for 1 minus voltage) | ||||
| Software | Compatible with GX Developer8.86 and GX WORKS 2 | |||||
Suggested models: QM3G-43FH/50FH-16MR/24MR/24MT(-4AD2DA-485P/232H) QM3G-70FH/HD-24MR/40MR/44MT (-12AD8DA-485P/232H) QM3G-70KFH/100FH-24MR/38MR/44MT (-16AD8DA-485P/232H) QM3G-70KFH/100FH-48MR/58MR/60MT (-5AD2DA-485P/232H) * If 30DI/30DO for QM3G-100FH, max support 5AI/2AO. If 24DI/20DO, max 16AI/8AO. Detailed info. refer to: “Coolmay QM3G-FH All-in-One User Manual”, “Coolmay CX3G/FX3GC PLC Programming Manual”, “Coolmay TK HMI User Manual”
| ||||||
