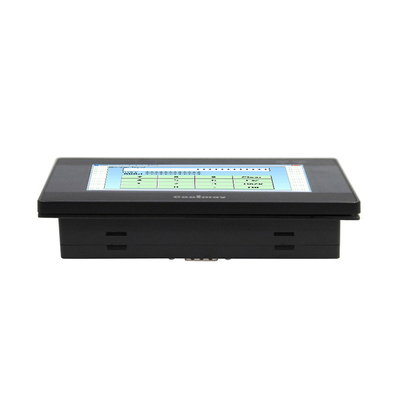

Compact Integrated PLC HMI 60K Colors Resistive Touch Screen Display
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature | 0-50°C | High-speed Counting | 6 Channels Single-phase 60KHz, Or 2 Channels AB (Z) Phase 30KHz + 1 Channel AB Phase 5KHz |
|---|---|---|---|
| Display | 60K Colors Resistive Touch Screen | Power Supply | 24V DC |
| HMI COM Port | 1 Type-C (HMI Download Port); 1 USB 2.0 Port | Programming Language | Ladder Logic, Structured Text, Function Block Diagram |
| Dimensions | 151*96*36mm | PLC COM Port | 1x Type-C Programming Port; 1x RS232 |
| High Light | Compact Integrated PLC HMI,60K Colors Integrated PLC HMI,Touch Screen Integrated PLC HMI |
||
Product Description
Product Description:
Integrated HMI PLC is an innovative industrial control system designed to provide a comprehensive solution for both Human Machine Interface (HMI) and Programmable Logic Controller (PLC) applications. It is an integrated solution that combines a touch screen HMI with a powerful PLC in one compact unit. This system features a programming language of Ladder Logic, Structured Text, and Function Block Diagram, and supports high-speed counting of 6 channels Single-phase up to 60KHz, or 2 channels AB (Z) Phase up to 30KHz plus 1 channel AB Phase up to 5KHz. The 800*480 resolution touchscreen provides an intuitive and user-friendly interface. It has a very compact size of 151*96*36mm and offers additional features such as Interrupt, Linear Arc Interpolation, PID Auto-tuning and 32K Program Capacity, 32K Retentive Register. The Integrated HMI PLC is perfect for industrial applications that require hmi interfacing with plc, plc and hmi, or plc industrial touch screen.
Features:
The upper computer programming software is compatible with Works 2/GX Developer 8.86 and supports the Ladder Diagram and SFC language. Structured programming and labels are not included. A clock is supported and the battery is rechargeable. The product includes one HMI Downloading port, two PLC programming ports, either RS232/MiniB type USB port or Type-C port, and one USB port.
The PLC has 32 K steps in its program capacity, and 32 K registers which are preserved when power is cut off. Its powerful functions include support for interrupt, linear and circular interpolation, PID and self-tuning. The software is compatible to Mitsubishi, while the HMI uses Coolmay Programming Software.
Technical Parameters:
| Features | Specifications |
|---|---|
| High-speed counting | 6 Channels Single-phase 60KHz, Or 2 Channels AB (Z) Phase 30KHz + 1 Channel AB Phase 5KHz |
| Dimensions | 151*96*36mm |
| Humidity | 5-95% RH |
| ROM | NOR Flash 16MB(Disk C Of System Area)+SD NAND 128MB(Disk D) |
| PLC COM port | 1x Type-C Programming Port; 1x RS232 |
| Programming Language | Ladder Logic, Structured Text, Function Block Diagram |
| Operating Temperature | 0-50°C |
| Name | Integrated HMI PLC |
| Power Supply | 24V DC |
| Resolution (pixels) | 800*480 |
| HMI Interfacing with PLC | Yes |
| Small PLC with Display | Yes |
| HMI with PLC Built in | Yes |
Applications:
The Coolmay PLC HMI All-in-One Machine
This all-in-one machine combines logic control, analog input and output, and HMI functions together. It also supports high-speed counting and high-speed pulse signals, plus highly integrated communication ports. With its comprehensive capabilities, this machine has a wide range of applications, such as food packing machinery, electronic manufacturing equipments, printing machines, textile machines, medical machines, testing machines, wind power equipments, engineering machines, plastic machines, tobacco machines, agricultural equipments, forestry equipments, animal husbandry machines, environmental protection equipments, auto manufacturing machineries, AGV cars, air compressors, logistics equipments and warehousing equipments.
Customization:
Integrated HMI PLC
Coolmay's EX3G-50i is a small PLC with display that combines a PLC and an HMI. It features a 60K Colors Resistive Touch Screen with a cutout size of 143*86mm and a resolution of 800*480 pixels. It has a 32K Program Capacity, 32K Retentive Register, and supports Interrupt, Linear Arc Interpolation, PID Auto-tuning.
The PLC comes with NOR Flash 16MB in the Disk C of the System Area and a SD NAND 128MB in the Disk D. It is certified with CE and ISO9001 and is available with a minimum order quantity of 1. The price is negotiable and delivery time is 1-3 days. Payment terms available are T/T, Western Union, MoneyGram. The supply ability is 1000 Units Per Week.
This PLC and HMI combination is ideal for plc hmi programming and provides enhanced control and flexibility. With its powerful combination of features, Coolmay's EX3G-50i is the perfect choice for your control system.
Packing and Shipping:
For Packaging and Shipping of Integrated HMI PLC, we recommend:
- Ensure all components of the Integrated HMI PLC are securely packaged and protected.
- Include a packing slip with detailed information about the product.
- Use a reliable shipping carrier that offers tracking and insurance.
- Choose a shipping method that can deliver the product in the required time.
FAQ:
Q1: What is the Brand Name and Model Number of this product?
A1: The Brand Name is Coolmay, and the Model Number is EX3G-50i.
Q2: What is the Place of Origin of this product?
A2: This product is from China.
Q3: What Certifications does this product have?
A3: This product has CE and ISO9001 certifications.
Q4: What is the Minimum Order Quantity?
A4: The Minimum Order Quantity is 1.
Q5: What about the Price, Packaging Details, Delivery Time, Payment Terms, and Supply Ability?
A5: The Price is Negotiable, Packaging Details is Carton, Delivery Time is 1-3 days, Payment Terms is T/T, Western Union, MoneyGram, and the Supply Ability is 1000 Units Per Week.
