32bit CPU 408MHz Touch Panel PLC With Low Power Consumption 5-7W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PLC Software | Compatible With GX Developer8.86 And GX WORKS 2 | Power Consumption | 5-7W |
|---|---|---|---|
| Product Name | PLC HMI All In One | ROM | NOR Flash 16MB(Disk C Of System Area)+SD NAND 128MB(Disk D) |
| Humidity | 5%~95% | Communication Interface | 1x Type-C Programming Port; 1x RS232 |
| CPU | 32bit CPU 408MHz | Display Resolution | 800x480 |
| High Light | 7W Touch Panel PLC,32bit Touch Panel PLC |
||
Product Description
Product Description:

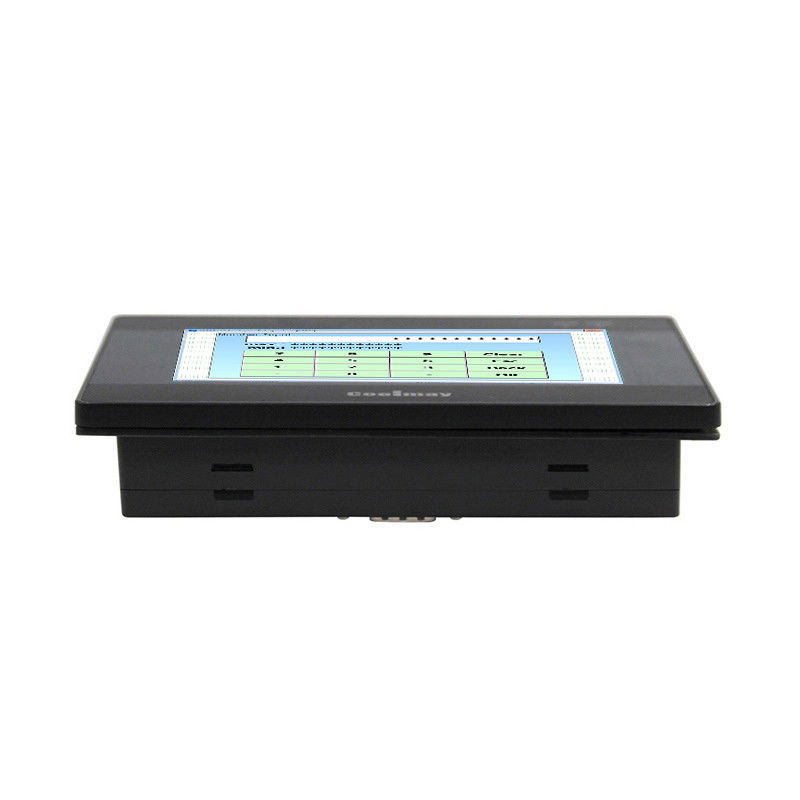

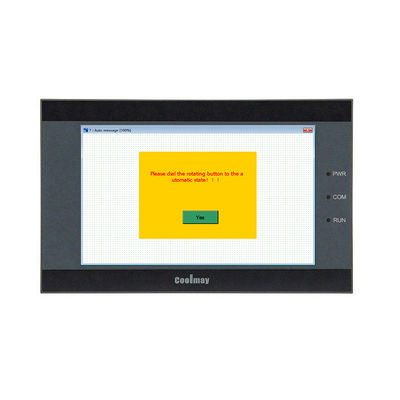

32bit CPU 408MHz Touch Panel PLC with Low Power Consumption 5-7W
Coolmay Technology has developed the EX3G series, a range of high-configuration devices. In addition to offering OEM and ODM services, these devices feature a integrated Human Machine Interface (HMI), Programmable Logic Controller (PLC), I/O and analog inputs/outputs, and high speed functions. Communication ports are able to be integrated with the device as well.
Features:
The HMI PLC all in one has super function,which is compatible with FX3G/FX3U/FX3S series PLC with fast operation speed and support multi-channel high-speed counting and high-speed pulse.The independent acceleration and deceleration and the total high-speed counting is up to 480KHz.
Additionally,it carries a 32K step program capacity and 32K power-off holding registers,and also support interrupt,linear arc interpolation,PID self-tuning.It is compatible with Mitsubishi programming software and the touch screen uses Coolmay HMl editing software.
In addition, a network module can be installed optionally for customers's requirements to achieve remote control.Any other more specifications can also be customized in batch.
Technical Parameters:
| Parameters | Value |
|---|---|
| Size | 5 Inch |
| Input Voltage | DC 24V |
| CPU | 32bit CPU 408MHz |
| Working Temperature | 0℃~50℃ |
| Humidity | 5%~95% |
| Power Consumption | 5-7W |
| ROM | NOR Flash 16MB(Disk C Of System Area)+SD NAND 128MB(Disk D) |
| RAM | 64MB |
| Display size | 108*65mm |
| Communication Interface | 1x Type-C Programming Port; 1x RS232 |
Applications:
Coolmay PLCs are extensively employed in various automation fields. Thanks to their numerous features, remarkable performance and easy installation, they provide customers with great convenience.
The function of Coolmay PLCs is multifarious, ensuring smooth operation. Furthermore, the installation is also quite simple, making them process even more efficient.
Support and Services:
Technical Support and Service for Touch Panel PLC:
- 24/7 online technical support
- Software and hardware installation assistance
- Troubleshooting and maintenance services
- Regular product updates and upgrades
- Customer service hotline
Packing and Shipping:
Packaging and Shipping for Touch Panel PLC:
The Touch Panel PLC is securely packaged in foam or bubble wrap to protect against shock, vibration, and other environmental hazards while in transit. The package will then be sealed in a box and labeled for shipment. The shipping method will depend on the customer's location and needs.
FAQ:
Coolmay Touch Panel PLC (Model Number: EX3G-50i)
Frequently Asked Questions
Q: Where is Coolmay Touch Panel PLC (Model Number: EX3G-50i) made?
A: Coolmay Touch Panel PLC (Model Number: EX3G-50i) is made in China and is certified with CE and ISO9001.
Q: What is the minimum order quantity for Coolmay Touch Panel PLC (Model Number: EX3G-50i)?
A: The minimum order quantity for Coolmay Touch Panel PLC (Model Number: EX3G-50i) is 1.
Q: What is the pricing for Coolmay Touch Panel PLC (Model Number: EX3G-50i)?
A: The pricing for Coolmay Touch Panel PLC (Model Number: EX3G-50i) is negotiable.
Q: What is the packaging for Coolmay Touch Panel PLC (Model Number: EX3G-50i)?
A: The packaging for Coolmay Touch Panel PLC (Model Number: EX3G-50i) is carton.
Q: What is the delivery time for Coolmay Touch Panel PLC (Model Number: EX3G-50i)?
A: The delivery time for Coolmay Touch Panel PLC (Model Number: EX3G-50i) is 1-3 days.
