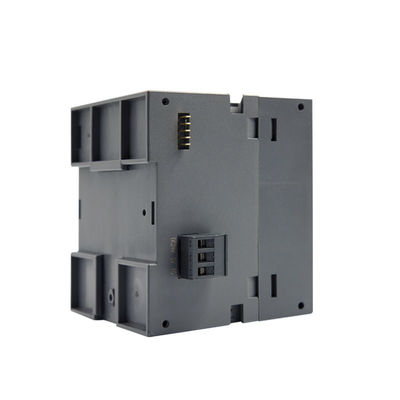

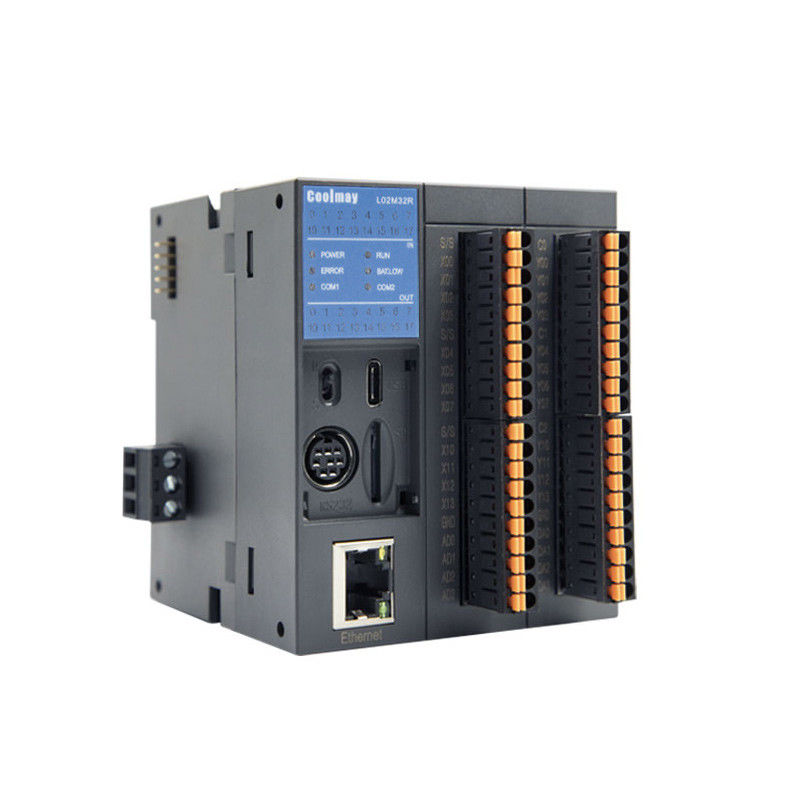

16DI 16DO PLC Logic Controller GX WORKS2 COM RS232 RS485 High Speed
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | CE |
| Certification | CE |
| Model Number | LO2M32R |
| Minimum Order Quantity | 1 set |
| Price | Details Need To Be Negotiated |
| Packaging Details | Carton |
| Delivery Time | 3-5 Days After Payment Confirmed |
| Payment Terms | TT,Paypal, Western Union, Credit Card |
| Supply Ability | 15000 Units Per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Digital I/O | 16DI/16DO | Program Capacity | 32k Steps |
|---|---|---|---|
| COM | RS232/485 | Software | GX WORKS |
| Rated Input Voltage | 24VDC | High-speed Pulse | 4-channels 150KHz +4-channels 50KHz |
| High Light | 16 DI DO PLC Logic Controller,32k steps PLC Logic Controller,Flash ROM Programmable Logic Controller |
||
Product Description
16DI/16DO PLC Logic Controller GX WORKS2 COM RS232/485 HIGH-SPEED
CoolmayL02 series PLC is a high-performance general-purpose controller specially designed for automation equipment. L02 series modules can be expanded up to 31 units. The appearance is simple and neat, the dark gray shell is anti-fouling and anti-dirty, suitable for harsh industrial environments, and has the characteristics of recyclability, low pollution, lead-free and so on. In line with international environmental regulations and the concept of resource reuse.
The host has a built-in communication network, which communicates with the Ethernet/IP industrial network to achieve high-speed data transmission. The DIP switch is set to lP, which can quickly build a network environment. Multiple sets of industry-specific function modules are built in, which is convenient for customers to use. Multiple password protection can be set to improve system security
| Programming language | Ladder diagram(LD) / lnstruction list / Sequential function chart(SFC) | |
| Program capacity | 32k steps | |
| Expansion model | Max limit of 31 units: max 12 analog input/output respectively | |
| Max l/O | FX3U mode: 512 points; FX3G mode: 256 points (the sum of input and output points) | |
| CPU Digital I/O | 16DI / 16DO | |
| CPU Analog I/O | / | |
| High-speed pulse | 4-axis 200KHz+4-axis 100KHz | |
| High-speed counter | 6 channels 60KHz | |
| Do type | LO2M32T/LO2M24T: Transistor output, load maximum 500mA, low level NPN, COM connected to negative | |
| LO2M32R/LO2M24R: Relay output, load maximum 2A, dry contact, COM can be connected to positive ornegative | ||
| Default COM | Type-C, RS-232, RS-485*2, Ethernet, CAN | |
| Protocol | Mitsubishi programming port Modbus RTU, Modbus TCP, Modbus UDP, freeport protocol, CAN, Ethernet/IP, Mitsubishi BD board | |
| Data backup function No battery storage |
Program | Flash ROM |
| Retentive area | MRAM has no write limit | |
| Calendar(RTC) | Commercially available batteries CR1620(optional) | |
| Self-diagnosis | CPU abnormalities, internal memory problems, etc | |
| Rated input voltage | 24VDC(土10%) | |
| Software | Compatible with WORKS 2 | |
| Detailed info. refer to Coolmay L02 Series PLC Progarmming Manual L02 Series PLC Controller User Manual | ||
Ethernet/IP solution:
Features:
L02 series CPU supports up to 8 axis servo control,6 groups of high-speed counter inputs
Support digital, analog and temperature module expansion (max 31 units)
Provide high-speed computing speed: the fastest execution speed of basic instructionscan reach 0.35us
Provide multiple motion control commands such as position, speed, positioning and interpolation
Built-in maximum 16DI/16DO,RS-232/RS-485*2,Ethernet and CAN interfaces
L02 host motion controller has built-in multiple l/O andcommunication interfaces, which can meet the market demandfor compactness, high performance and high value
