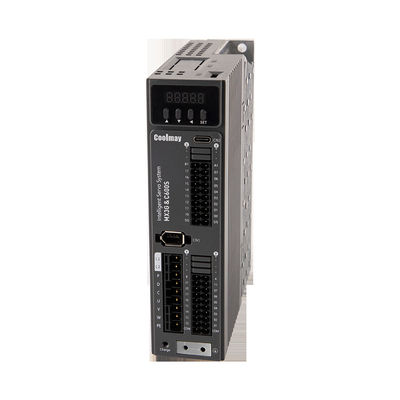

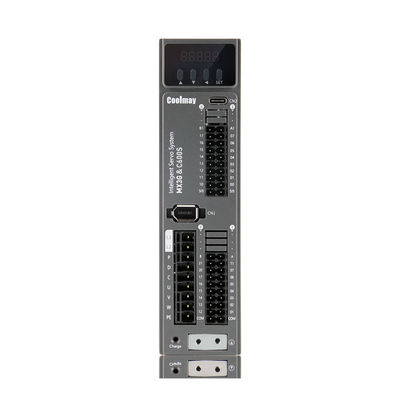

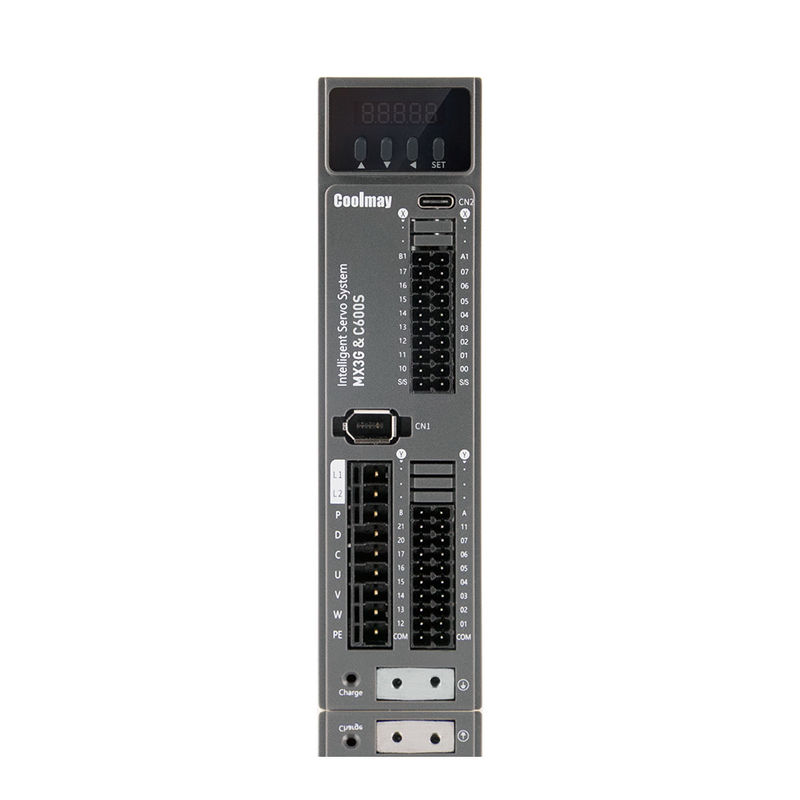

Single Phase AC220V PLC Servo Drive Coolmay Servo PLC All In One

Place of Origin China
Brand Name Coolmay
Certification CE
Model Number MX3G-C40-32MT
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms T/T,Paypal, Western Union, Credit Card
Supply Ability 1500 pcs per week
Product Details
Warranty 18 Months Brand Coolmay
I/O Fixed 16DI/16DO PLC Logic Supply Voltage DC24V
High Light

AC220V PLC Servo Drive

,

Single Phase PLC Servo Drive

,

Servo PLC All in one

Leave a Message
Product Description

Coolmay Servo PLC All-in-one 160*135*42 Dimension Single-phase AC220V



lnstallation instructions
Servo installation method

  • Installation direction: the normal installation direction of servo driver is vertical and upright.
  • Installation and fixation: during installation, tighten the two M4 fixing screws at the rear of the servo driver. Grounding: be sure to ground the grounding terminal of the driver, otherwise there may be the risk ofelectric shock or interference to produce wrong action.
  • . Wiring requirements: when wiring the driver, please route the cable downward (refer to the figure below)to avoid the cable flowing into the driver when there is liquid attached to the cable on site.
  • lnstallation interval: please refer to figure 1 for the installation intervaldistance between drives and otherequipment. Note that the minimum size is indicated on the figure. In order to ensure the serviceperformance and service life of drives, please leave sufficient installation interval as far as possible.
  • Heat dissipation: the servo driver adopts natural cooling mode and forced cooling mode.
  • Installation precautions: when installing the electrical control cabinet, prevent dust or iron filings fromentering the servo driver.

Ordering information

Servo drive naming

MX3G - C40 - 32MT

①          ②       ③





No. implication
Coolmay technology mx3g series servo PLC all-in-one machine
Specific power of servo below 1KW,C40:50W~400W; C75:400W~750w
PLC switching value,16 in /16 out, transistor output.




Single Phase AC220V PLC Servo Drive Coolmay Servo PLC All In One 0
