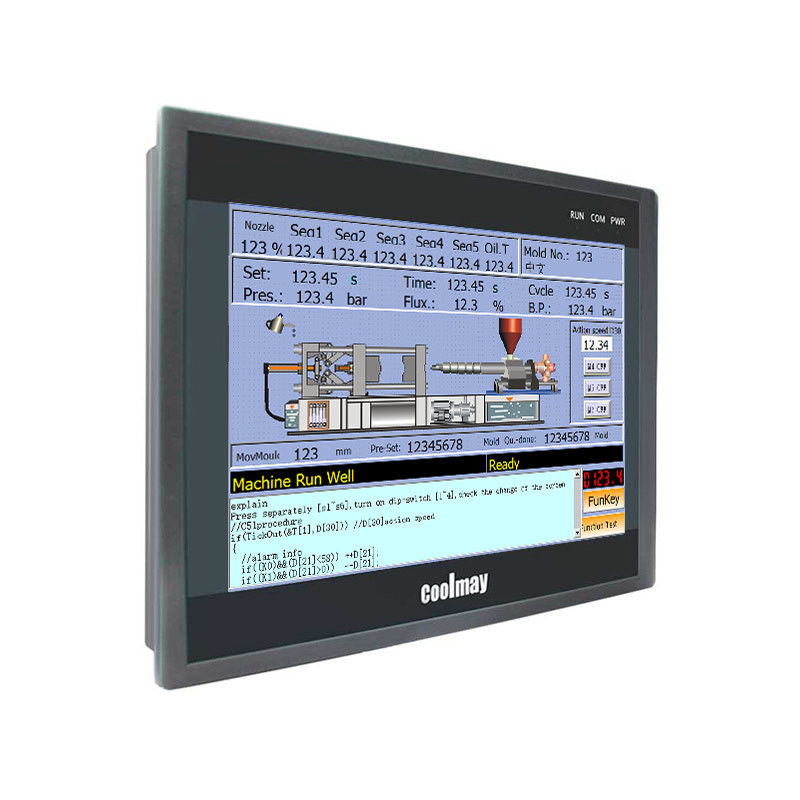

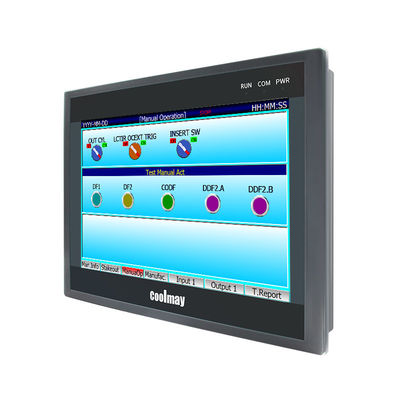

High Speed Integrated HMI PLC Single Phase 6 Channel 60KHz RS232
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Analog I/O | Max 16AI/8AO (optional) | DI/DO | Max 30DI/30DO (max 28MR) |
|---|---|---|---|
| High-speed Counting | 6 Channel 60KHz | CPU | 32bit CPU 408MHz |
| ROM | NOR Flash 16MB | RAM | 64MB |
| High Light | High Speed Integrated HMI PLC,Single Phase Integrated HMI PLC,6 Channel Resistive Panel PLC |
||
Product Description
Handwheel pulse function
The handwheel pulse generator is commonly known as electronic handwheel and handwheel. It is mainly used for the setting of the teaching CNC machine work origin in CNC machine tools, manual stepping fine adjustment, and interruption insertion during processing. Widely used in CNC engraving and milling machines, CNC milling machines, CNC lathes, machining centers, CNC wire cutting machine tools, CNC EDM machine tools, printing equipment, textile machinery and other fields.
Coolmay QM3G series PLC supports the function of handwheel (only supports servo motors, not stepper motors). With the cooperation of QM3G PLC, the handwheel is used to control the rotation of the motor, which can realize the rotation of the handwheel by one pulse and the motor also rotates correspondingly number of pulses.
High speed pulse output
Coolmay QM3G series plc default has 8 channels high speed pulse, Y0-Y3 each 200KHz, Y4-Y7 each 100KHz (Y4-Y7 total should not be over 200KHz),variable speed supported, the initial/final speed of start/stop is 0, diagram as below: (take accelerate and decelerate time D8148 as an example).
Acceleration/deceleration time T calculation=
(target speed-current speed)*acceleration/deceleration time÷maximum speed.
Parameter:
|
Display |
Dimension |
275*194*36mm |
|
Cutout size |
262*180mm |
|
|
Type |
10"TFT |
|
|
Feature |
60K-color resistive touch screen, supports portrait display |
|
|
Memory |
RAM |
64MB |
|
ROM |
NOR Flash 16MB |
|
|
CPU |
32bit CPU 408MHz |
|
|
I/O |
DI/DO |
Max 30DI/30DO (max 28MR) |
|
DI/DO level |
Input: Passive NPN, public terminal isolated |
|
|
DO type and load |
Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM. |
|
|
Analog I/O |
Max 16AI/8AO |
|
|
AI type (optional) |
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ |
|
|
AO type (optional) |
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ |
|
|
High-speed function |
High-speed counting |
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, |
|
High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. |
|
|
Connection |
HMI |
Type-B HMI download port (can download PLC program through the USB penetrating function), RS232 |
|
1 RS485 (changed from default RS232) |
||
|
PLC |
1 Mini USB, 1 RS232 (program port) |
|
|
1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port) |
||
|
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port) |
||
|
Software |
HMI |
Coolmay mView HMI Programming Software |
|
PLC |
Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
Advantage:
◆Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.
◆Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆Clock supported, rechargeable battery adopted.
◆Default with 1 HMI download port, 2 PLC programming ports (RS232/MiniB USB port or Type-C), and one USB port.
◆Support Mitsubishi programming protocol/MODBUS protocol/RS protocol/BD board protocol, easily realize PLC interconnection and communication with external devices.
◆Convenient wiring. All wiring terminals adopt 3.81 pitch pluggable terminals, which is convenient for customers to use.
◆Flexible use. More specifications and batches can be customized according to customer requirements.
◆32K program capacity, 32K retentive register, support interrupt, linear arc interpolation ,PID auto-tuning, high powerful.
◆The PLC is compatible with Mitsubishi programming software, and the HMI uses TK series human-machine interface programming software mView.
