Original Integrated HMI Programmable Logic Controller 4.3 Inch
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hmi Plc All In One | Size | 4.3 Inch |
|---|---|---|---|
| Resolution | 480x272 | CPU | 408MHz |
| Digital IO | 12/12 | Analog IO | 4/2 |
| Download Port | Type C | Com Port | RS232,RS485 |
| High Light | 4.3Inch HMI Programmable Logic Controller,2AO HMI Programmable Logic Controller,2AO PLC HMI |
||
Product Description

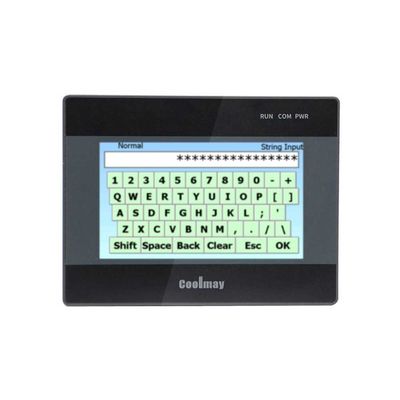

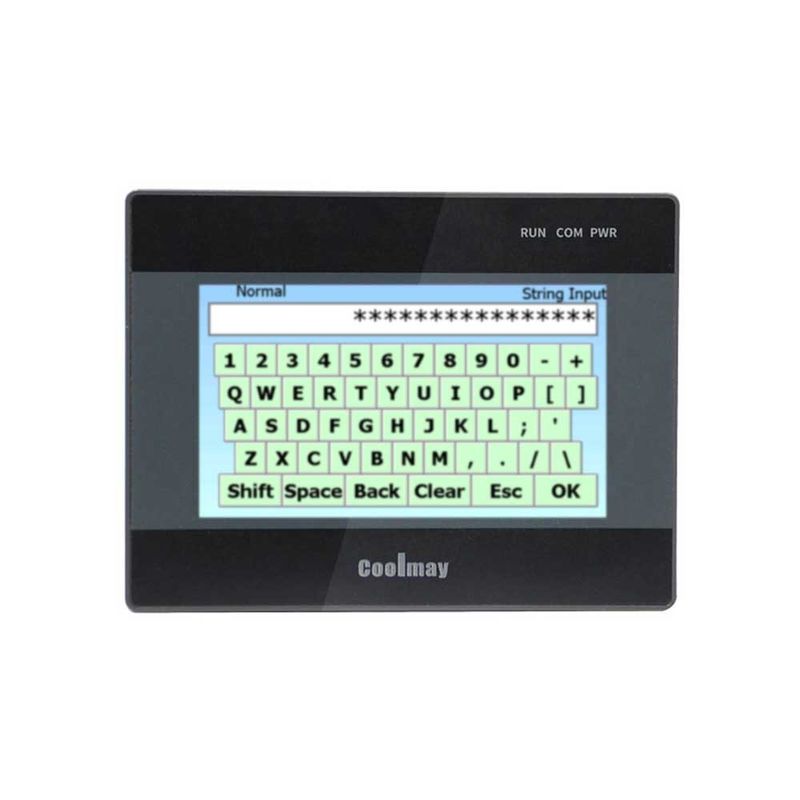

Original Integrated HMI Programmable Logic Controller 4.3 Inch
Coolmay Original Integrated Hmi Plc All In One 4.3 Inch For Industrial
All-in-One PLC integrates the controller with the HMI panel, creating a compact, easy-to-use automation solution. Users no longer need to establish PLC to panel communications.
All-in-one device application can saves time, reduces wiring, and cuts the cost of purchasing multiple devices.
Model : QM3G-43FH-24M
Resolution : 480 x 272
Digital Input : 12
Digital Output: 12 (Relay or Transistor as customized requirements)
Analog Input : 4 (Optional with different signal type)
Analog Output : 2 (Optional with different signal type)
HMI / PLC downloading Port : Type C .
| Model |
QM3G-43FH-24M |
|

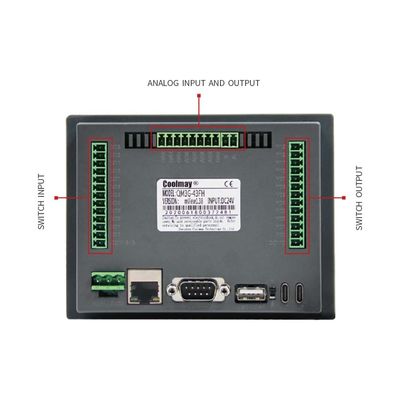

| Display | Dimension | 134*102*34mm |
| Cutout size | 120*94mm | |
| Power Consumption | 4-6W | |
| Feature | 60K-color resistive touch screen, supports portrait display | |
| I/O | DI/DO | Max 12DI/12DO |
| DI/DO level |
Input: Passive NPN, public terminal isolatedTransistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
|
| DO type |
Relay MR or MOS (Relay output: max load 5A/ MOS output: max load 2A) |
|
|
Analog I/O (optional) |
Max 4AI/2AO | |
| AI type (optional) |
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
|
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed | |
| High-speed function | High-speed counting |
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
|
| Connection | HMI | Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
| / | ||
| PLC | 1 TYPE-C, 1 RS232 (program port) | |
|
1 Rs485 or 2 Rs485 COM ports (one of which is changed from the default RS232 port); 1 WIFI (occupy default RS232 port) |
||
| Software | HMI | Coolmay mView HMI Programming Software |
| PLC | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 | |
Programmable logic controller that uses a type of programmable memory for its internal program to perform user-oriented instructions such as logic operations, sequence control, timing, counting, and arithmetic operations, and through digital or analog input/output Control various types of machinery or production processes.
