4G Industrial PLC Ethernet Module 300bps Guide Rail Installation
| Brand Name: | Coolmay |
| Model Number: | CX-4G |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100,000 pcs per month |
300bps PLC Ethernet Module
,RS485 PLC Ethernet Module
,300bps plc wifi module
4G Industrial PLC Ethernet Module 300bps Guide Rail Installation

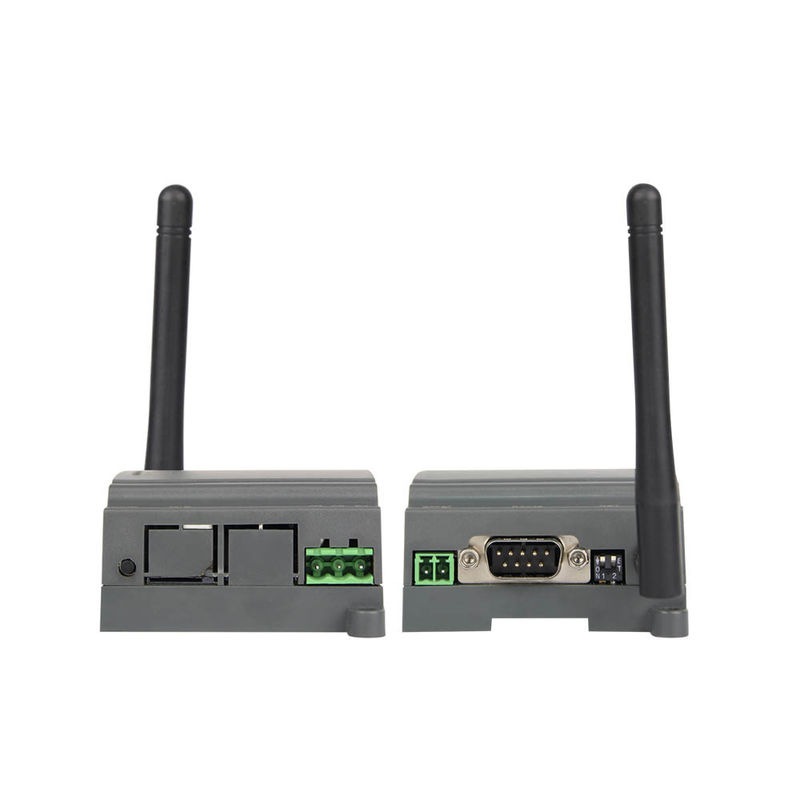

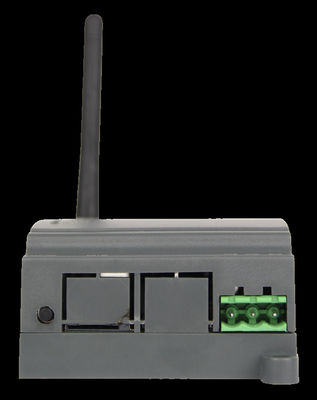

4G Industrial IoT Module Standard Guide Rail Installation Power And RS232/485 Applies Pluggble Terminals
CX-4G is a small, feature-rich GPRS transparent transmission module for Mobile, China Unicom, Telecommunications 4G and Mobile, China Unicom 3G and 2G network standard.
To "pass through" as the core function, a high degree of ease of use, users can quickly and easily integrated in their own systems.
And support the custom registration package, heartbeat package function, support 4-way Socket connection, and support transparent transmission with high speed, low latency.
The module is compatible with our CM-GPRS module 2G product, the user can directly replace, in order to achieve a substantial increase in communication speed, we have hardware design on the hardware watchdog to ensure long-term stability of the product.
The module software features perfect, covering the vast majority of conventional application scenarios, users simply through a simple set, you can achieve serial to the network of two-way data transparent transmission
Parameters:
| Installation | Standard guide rail installation and can be installed on NS35/7.5 or NS32 guide slot |
| Dimension | 65*90*36mm |
| Wiring | Power and RS232/485 applies pluggble terminals |
| Frequency range | 5 modes 12 channels |
| Network standards | TDD-LTE/ FDD-LTE WCDMA/ TD-SCDMA/ GSM/ GPRS/ EDGE |
| Data interface |
RS232, RS485 300~230400bps |
| Network type | TDD-LTE/ FDD-LTE WCDMA/ TD-SCDMA GSM/ GPRS/ EDGE |
| Network protocol | TCP/ UDP/ DNS/ HTT |
| User configuration |
Serial port/ network/ message AT instruction (configuration software is offered) |
| Transmit power | 300~230400bps |
| Software | Visual serial port CM-VCOM CM-GPRS module setting software CM-NET module setting software CX-4G module setting software |
Indicator light function:
CX-4G module have eight indicator lights: POWER,CHAR,WORK,NET,LINKA,LINKB,RX,TX, the state are as below:
|
Indicator lights name |
Indicator function |
state |
|
POWER |
Indicator light of power supply |
Power supply works normal |
|
CHAR |
Lithium battery charge indicator(optional) |
When lithium battery is optional, and be charged |
|
WORK |
System operating indication |
Indicator lights always normal when system operation |
|
NET |
Network state indicator |
2G network flashes twice within one second 3G network flashes three times within one second 4G network flashes four times within one second |
-
