Coolmay TK6070FH WIFI HMI Human Machine Interface 32bit CPU 408MHz

Place of Origin Shenzhen
Brand Name Coolmay
Certification CE
Model Number TK6070FH
Minimum Order Quantity 1unit
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working day
Payment Terms T/T, Western Union
Supply Ability 100,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutout Size 192*138mm Resolution 800*480 Pixels
Backlight LED Display Color 65536 Colors
Touch Type 4-wire Resistive Panel Download Port Type-C, RS232, RS485
COM Port Optional 1 WIFI (occupy Default RS485 Port) Software MView HMI Programming Software
High Light

32bit HMI Human Machine Interface

,

RS485 HMI Human Machine Interface

,

coolmay tk6070fh

Leave a Message
Product Description

Coolmay TK6070FH WIFI HMI Human Machine Interface 32bit CPU 408MHz

HMI Control Panel MView HMI Programming Software Optional 1 WIFI COM Port 32bit CPU 408MHz



The human-machine interface is an intelligent terminal with a microprocessor, which is generally used in industrial situations to realize information interaction between humans and machines, including text or graphic display and input. It has rich graphics functions, which can realize various required graphics display, data storage, network communication and other functions, and has high reliability.



Parameter:

Dimension 200*146*36mm
Cutout size 192*138mm
Display size 154*87mm
Weight Appox. 0.54 kg

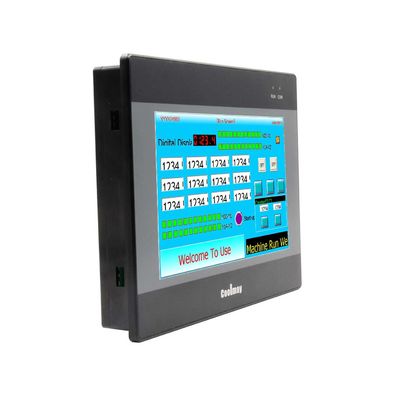

Display 7.0" TFT
Resolution

800*480 pixels

Brightness 300cd/m²
Contrast ratio 400:01:00
Backlight LED
Backlight time 60,000 hours
Display color 65536 colors
Touch type 4-wire resistive panel
ROM NOR Flash 16MB
RAM 64MB
CPU 32bit CPU 408MHz

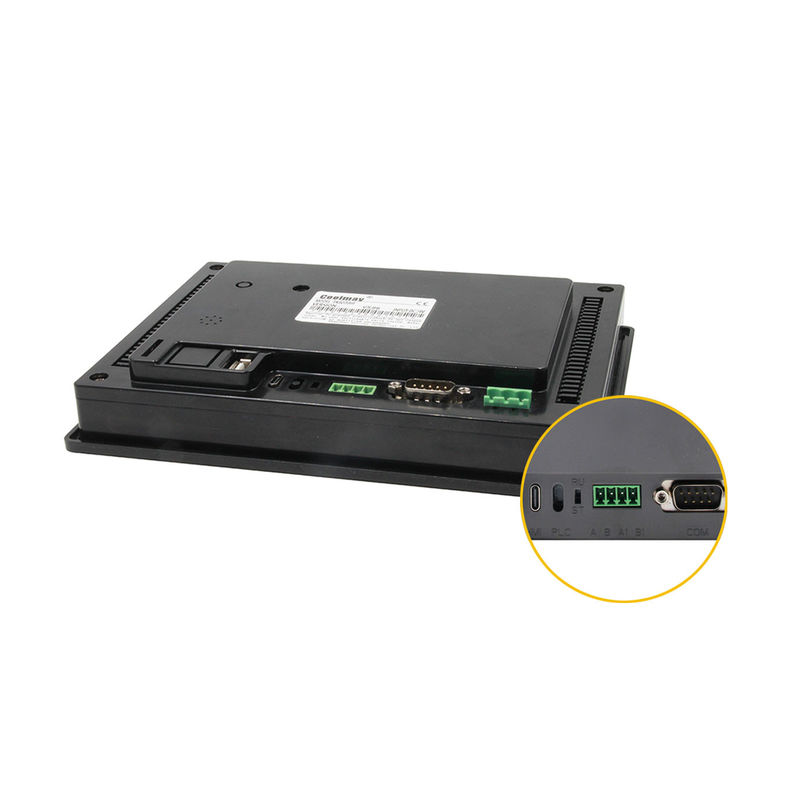

Download port Type-C, RS232, RS485
COM port 1 RS232, 1 RS485
Optional 1 WIFI (occupy default RS485 port)
Protocol Support MODBUS, free port and common PLC communication Protocol
Calendar Yes
Input Voltage 12-24VDC±10%<150mA @ 24VDC
Consumption 107mA/24V
Protection Class IP65 (front panel)
Temperature

Ambient environment: 0~50℃

Storage environment: -20~70℃

Humidity 20%~90% RH
Certification CE

Software

CoolMay mView HMI programming software



Festures:
It supports many communication protocols and can communicate with more than 200 PLC and controllers on the market.

IP65 Panel protection grade, 65K TFT
Brand new high-brightness,high-contrast display LCD, providing colorful operation interface.

Optional WIFI
802.11b/g/n wireless communication standard protocol; convenient upload/download function of configuration software via network cable.

Thin and light embedded
Can be easily installed in various complex industrial application environments.

Conformal coating protection for motherboard
In various harsh industrial environments, it is more effective against shock, moisture,high and low temperature, and chemical corrosion.

Integrated rich industrial interfaces
RS232, RS485, USB2.0, WIFI, Ethernet

Onboard 408MHz high performance 32Bit industrial grade CPU
has fast running speed,high data processing efficiency and strong anti-interference ability.

Data security upgrade
This series of HMl supports password man-agement functions. Users can set passwords for specific registers, buttons,and screens, and add permissions to ensure data security.



Mounting Size:

Coolmay TK6070FH WIFI HMI Human Machine Interface 32bit CPU 408MHz 0

TK software "mView" editing interface:

Coolmay TK6070FH WIFI HMI Human Machine Interface 32bit CPU 408MHz 1

  • Title bar: Displays the currently opened project path and file name, window number, and window name.
  • Menu bar: A menu that displays various commands of CoolMayView. These menus are pull-down menus.
  • Standard toolbar: Shortcut buttons for placing some commands. Corresponding buttons and editing tools for displaying files, editing, printing and other functions.
  • Design components: Command buttons for component objects.
  • Screen management: The management window of the screen used by the project.
  • Communication management: engineering designers to manage, set up a window to communicate with PLC or other serial devices.
  • Label management: Set labels for system variables and external variables to facilitate users to quickly find the corresponding variables.
  • Status bar: Displays the current operation status, human-machine interface parameters, and communication equipment.
