32bit CPU HD HMI Control Panel 24V 107mA 7 HMI Touch Screen Module
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 200*146*36mm | Display Size | 154*87mm |
|---|---|---|---|
| Resolution | 1024*600 Pixels | Brightness | 300cd/m² |
| ROM | NOR Flash 16MB RAM | CPU | 32bit CPU 408MHz |
| Protocol | MODBUS | Consumption | 107mA/24V |
| High Light | 32bit CPU HMI Control Panel,107 mA HMI Control Panel,CE 7 HMI Touch Screen |
||
Product Description

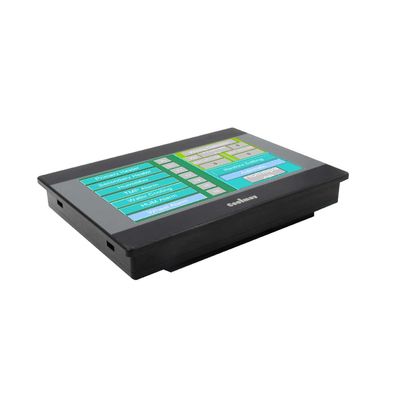

32bit CPU HD HMI Control Panel 24V 107mA 7 HMI Touch Screen Module
7 Inch HD HMI Control Panel 32bit CPU 408MHz Consumption107mA/24V Support MODBUS, Free Port PLC Communication Protocol
TK series touch screen connect programmable logic controller (PLC), frequency converter, DC speed controller, instrument and other industrial control equipment, use the display screen to display, write working parameters or input operation commands through input units (such as touchpad, mouse, etc.) to achieve a digital device for information interaction between humans and machines, consisting of two parts: hardware and software.
Parameter:
| Dimension | 200*146*36mm |
| Cutout size | 192*138mm |
| Display size | 154*87mm |
| Weight | Appox. 0.54 kg |
| Display | 7.0" TFT |
| Resolution |
1024*600 pixels |
| Brightness | 300cd/m² |
| Contrast ratio | 400:01:00 |
| Backlight | LED |
| Backlight time | 60,000 hours |
| Display color | 65536 colors |
| Touch type | 4-wire resistive panel |
| ROM | NOR Flash 16MB |
| RAM | 64MB |
| CPU | 32bit CPU 408MHz |

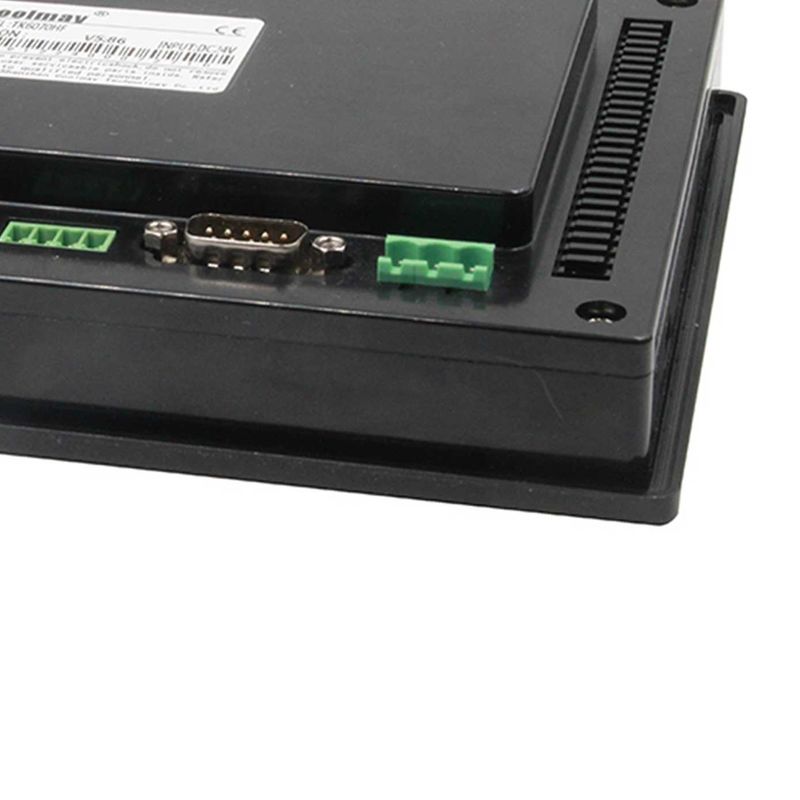

| Download port | Type-C, RS232, RS485 |
| COM port | 1 RS232, 1 RS485 |
| Optional | 1 WIFI (occupy default RS485 port) |
| Protocol | Support MODBUS, free port and common PLC communication Protocol |
| Calendar | Yes |
| Input Voltage | 12-24VDC±10%<150mA @ 24VDC |
| Consumption | 107mA/24V |
| Protection Class | IP65 (front panel) |
| Temperature |
Ambient environment: 0～50℃ Storage environment: -20～70℃ |
| Humidity | 20%～90% RH |
| Certification | CE |
|
Software |
CoolMay mView HMI programming software |
TK software "mView" editing interface:
- Title bar: Displays the currently opened project path and file name, window number, and window name.
- Menu bar: A menu that displays various commands of CoolMayView. These menus are pull-down menus.
- Standard toolbar: Shortcut buttons for placing some commands. Corresponding buttons and editing tools for displaying files, editing, printing and other functions.
- Design components: Command buttons for component objects.
- Screen management: The management window of the screen used by the project.
- Communication management: engineering designers to manage, set up a window to communicate with PLC or other serial devices.
- Label management: Set labels for system variables and external variables to facilitate users to quickly find the corresponding variables.
- Status bar: Displays the current operation status, human-machine interface parameters, and communication equipment.
