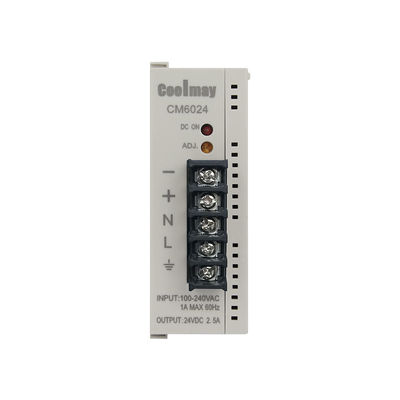

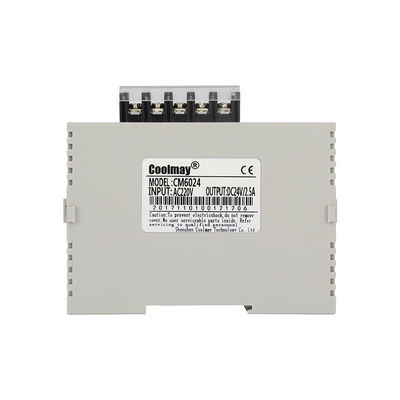

Compact Size 24 Volt Din Rail Power Supply 2.5A Short Circuit Protection

  • Compact Size 24 Volt Din Rail Power Supply 2.5A Short Circuit Protection
  • Compact Size 24 Volt Din Rail Power Supply 2.5A Short Circuit Protection
Place of Origin China
Brand Name Coolmay
Model Number CM6024
Minimum Order Quantity 1 Unit
Price Details Need To Be Negotiated
Packaging Details Carton
Delivery Time 3-5 Days After Payment Confirmed
Payment Terms TT,Paypal, Western Union, Credit Card
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension 90*60*32mm Input Voltage 88～264VAC Or 125~373VDC
Output Voltage DC24V Output Current 2.5A
No-load Consumption ＜0.5W Defensive Function Short Circuit/ Over Voltage/ Overload Protection
High Light

24 Volt Din Rail Power Supply

,

2.5A Din Rail Power Supply

,

2.5A din mount power supply
Leave a Message
Product Description

Compact Size 24 Volt Din Rail Power Supply 2.5A Short Circuit Protection

Din Rail Easy Installation 24V PLC Power Supply Compact Size



COOLMAY CM6024 /CX2024 /CX6024-12-5 din rail type industrial power supply and CM15024 industrial power supply Al l adopt imported power supply dedicated driver chip, high precision high temperature resistant electronic components and international advanced PWM pulse width modulation technology, with short circuit, overload, over voltage, overheating and other protection functions.



Features:

  1. Advanced PWM pulse width modulation technology.
  2. Imported switching power s upply dedicated driver chip.
  3. Soft start current, effectively reducing transient voltage surges.
  4. High temperature electrolytic capacitors are used to ensure system reliability.
  5. 120% full load aging test with strong output.
  6. Built-in EMI and filter. Ripple and noise are minimal.
  7. Short circuit protection, overload protection, over voltage protection and other functions.
  8. Natural heat dissipation, stable performance and high reliability.
  9. Average trouble-free working time up to 100,000 hours.

Parameters:



Article CX6024-12-5 CX2024 CM6024 CM15024
Dimension 85*90*36mm 65*90*36mm 90*32*60mm 159*97*38mm
Connection mode 7.62 Barrier terminal 7.62 Barrier terminal 5P-7.62 Barrier terminal 7P-9.5Barrier term
Input voltage 1A 0.8A 2.5A 6.5A
Output efficiency 86% 85% 86% 89%
Installation Standard guide rail's installation, can be installed on NS357.5or NS35 guide slot screw fixation, vertically or parallel installation
Impulse current 30A/230VAC 60A/230VAC
Input frequency 47~63Hz
Input voltage 88~264V AC/125~373V DC (Withstand 300 VAC surge input 5S, no damage)
Output voltage DC24V/DC12V/DC5V DC24B
Output accuracy ±1%
No-load consumption <0.5w
Life time 100000 hours at room temperature 25 ° C
Overload protection Rated output 110%~180%, hiccup protection mode, automatic recovery after load abnormal condition removal
Overvoltage protection 27.6～32.4V
Short circuit protection Automatic protection when the output is short-circuited (LED off), automatically restored after the short-circuit is released
Insulation withstand voltage I/P-O/P: 3KVA, I/P-FG: 1.5KVA, O/P-FG: 0.5KVA,1 minute
Working environment working environment-20～+70° C / working humidity20～90%RH
Storage environmen No condensation, storage temperature -40 ~ +85 ° C / storage humidity 10 ~ 95% RH





Wiring Picture:



Compact Size 24 Volt Din Rail Power Supply 2.5A Short Circuit Protection 0



FAQ:



1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
