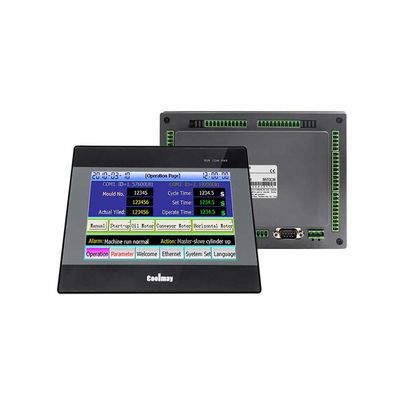

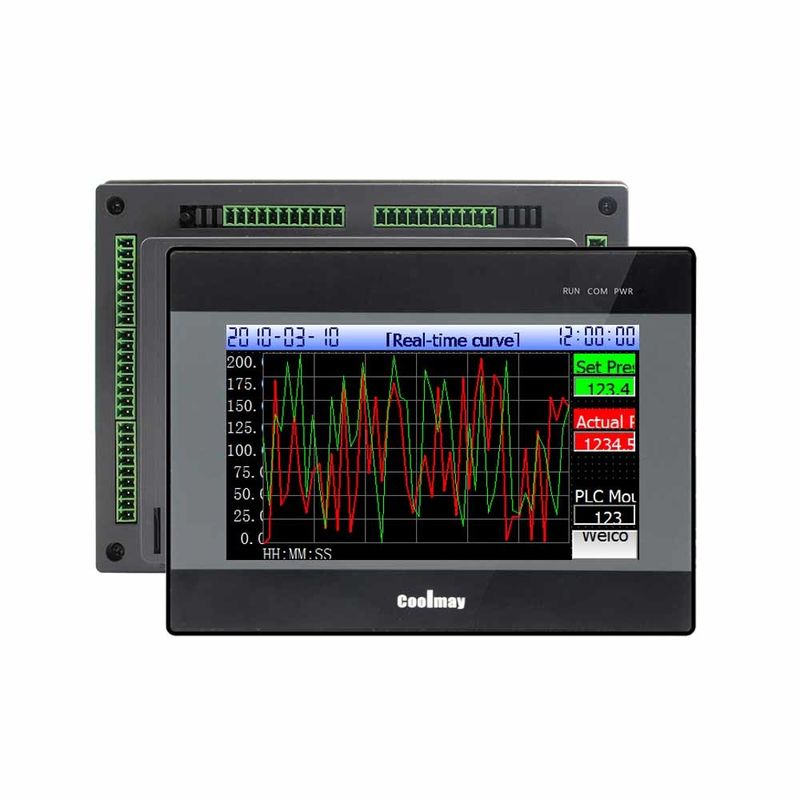

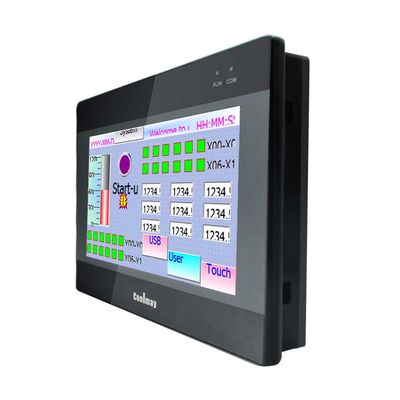

7 Inch Integrated HMI PLC Combo Servo Motor Controllers QM3G
| Place of Origin | China |
|---|---|
| Brand Name | Coolmay |
| Certification | CE |
| Model Number | QM3G-70FH-44MT-4P4P0-485P |
| Minimum Order Quantity | 2 units |
| Price | US$129~299 per unit |
| Packaging Details | Packed with standard carton box |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Industrial Controller | Digital I/O | 24DI/20DO |
|---|---|---|---|
| Output Type | Transistor | PID | Yes |
| HS Output | Y0~Y3 100KHz, Y4~Y7 10KHz | CPU | 32 Bit CPU 408 MHz |
| Software | GX Works2, Coolmay MView | Ethernet | Yes For PLC |
| High Light | 7 Inch HMI PLC Combo,HMI PLC Combo,QM3G |
||
Product Description
7 Inch Integrated HMI PLC Combo Servo Motor Controllers QM3G
HMI PLC Combo 7 Inch Programmable Touch Screen Monitor Integrated Servo Motor Controllers
QM3G HMI PLC combo series are powerful programmable controllers with incredible HMI features, backed by the most efficient programming software mView. It is superbly compact, 4.3", 5″, 7” or 10.1″ are highly compact controllers, where the PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations.
Features
-
Built-in, high-quality 4.3", 5″, 7” or 10.1″ HMI touch panel
-
Powerful PLC: 32,000 steps program, support PID automation
-
Built-in COM ports: RS232, RS485, USB type C, Ethernet (optional)
-
Support high-speed counting, high-speed pulse, communication port integrated
-
Support arc and linear interpolation
Specifications
|
Model |
QM3G-70FH-44MT-4P4P0-485P |
|
|
Display |
Dimension |
200*146*36mm |
|
Cutout size |
192*138mm |
|
|
Power Consumption |
6-7W |
|
|
Feature |
60K-color resistive touch screen, supports portrait display |
|
|
Memory |
RAM |
64MB |
|
ROM |
NOR Flash 16MB |
|
|
CPU |
32bit CPU 408MHz |
|
|
I/O |
DI/DO |
24DI/20DO, transistor outputs, NPN input |
|
High-speed function |
High-speed counting |
Single phase 6 channel 60KHz |
|
High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. |
|
|
Connection |
HMI |
Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
|
PLC |
1 TYPE-C, 1 RS232 (program port), 1 RS485 communication port |
|
|
Software |
HMI |
Coolmay mView HMI Programming Software |
|
PLC |
Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
|
Positioning control——high-speed pulse
-
Transistor output CPU: conventional 8-axis, YO-Y3 is 100KHz,Y4-Y7 is 10KHz
-
Support positioning, can quickly complete the positioning function, up to 8 axies
-
Each axis control is realized by instructions, PLC program is highly readable and easy to maintain
Short time to download program
-
Based on Tycpe-C/Type-B port, mini USB port, program download is quick and time-savingThe USB interface conforms to the USB specification and uses a commerciallyavailable USB cable, which can perform high-speed data transmission and greatlyshorten the download time.
-
Through the USB penetration function of the touch screen,HMl and PLC program-ming use the same programming cable, users do not need to change repeatedly, allonly need one cable.
Applications
Hot air sealing machine
Process flow diagram
