RS232 RS485 HMI PLC All In One Resistive HMI Automation Touch Panel PLC

Place of Origin Shenzhen
Brand Name Coolmay
Certification CE
Model Number QM3G-50FH-24MT-485P
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working days
Payment Terms T/T, Western Union
Supply Ability 100,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Analog I/O (optional) Max 4AI/2AO DI/DO 12DI/12DO
Connection Type-C High-speed Pulse High-speed Counting + High-speed Pulse < 480KHz
DI/DO Level Public Terminal Isolated Program Port RS232 RS485
High Light

HMI PLC All In One Touch Panel

,

Resistive HMI Touch Panel PLC

,

Automation Touch Panel PLC

Leave a Message
Product Description

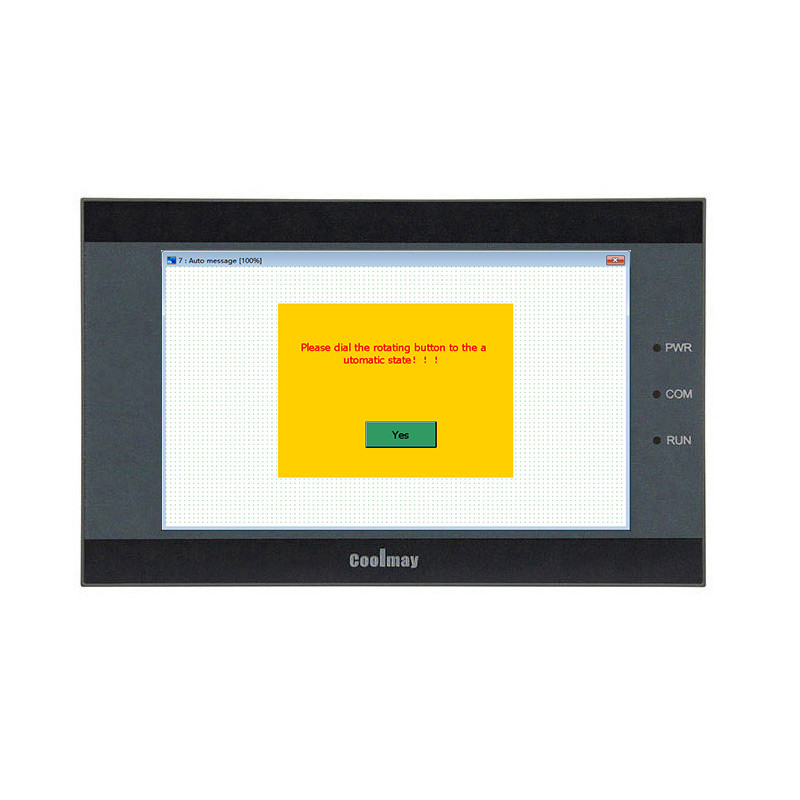

HMI PLC All In One Resistive HMI Plc Automation Touch Control Panel PLC RS232 RS485

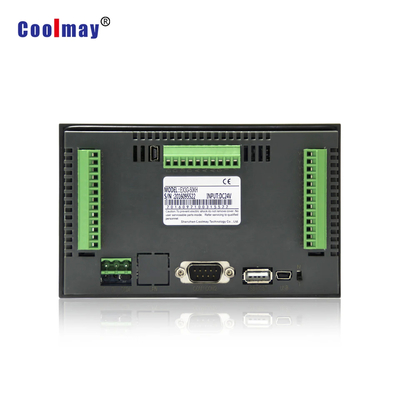

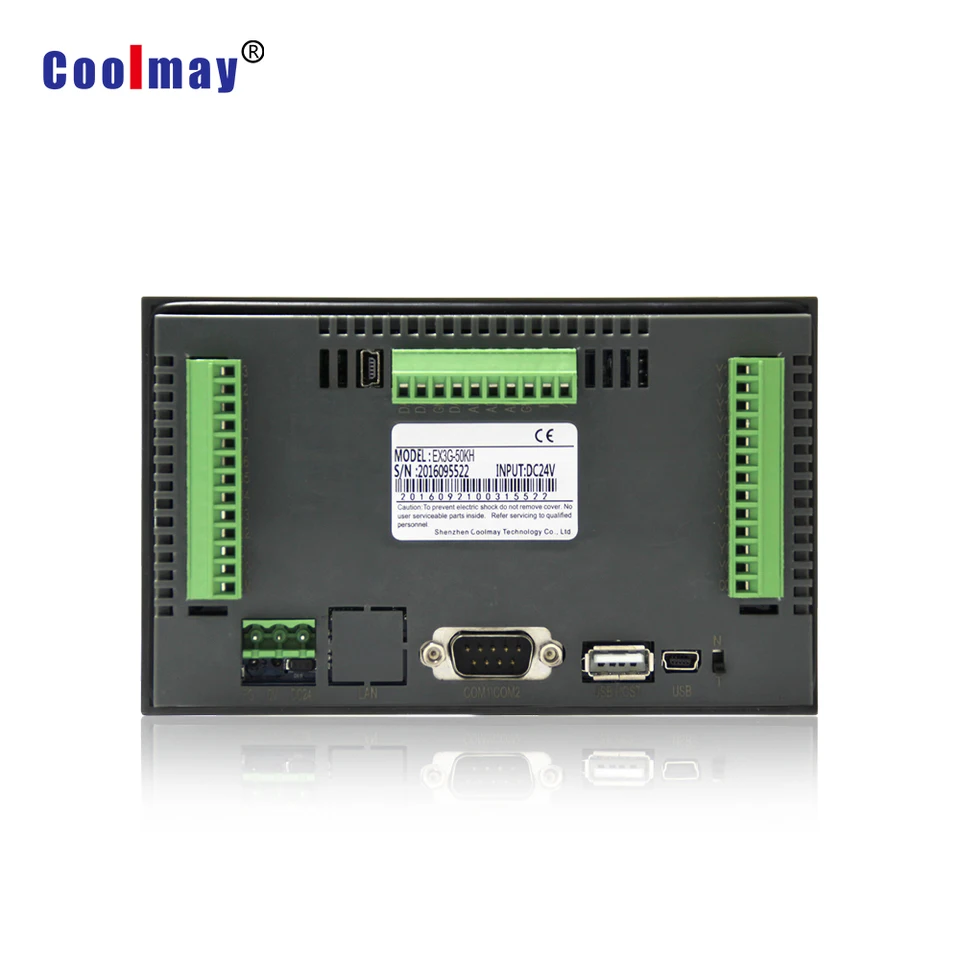

Introduction of each interface and indicator:
POWER: power indicator, the light is on when the power is connected.
RUN: PLC running status indicator, the light is on when the PLC is running.
COM: HMI and PLC communication status indicator, the light is on when the two communicate.
Power terminal: the positive and negative poles of the DC24V switching power supply are connected to the DC24V and 0V of the power terminal respectively.
PLC programming port: two PLC programming ports (Mini type B USB programming port or Type-C/RS232), PLC program can be downloaded through 232 programming cable or USB cable.
HMI programming port: download the touch screen configuration program.
USB interface: mainly can be directly inserted into a U disk with a FAT 32 file system, or a mouse (under development)


Parameter:

Display

Dimension

151*96*36mm

Cutout size

143*86mm

Type

5" TFT

Feature

60K-color resistive touch screen, supports portrait display

Memory

RAM

64MB

ROM

NOR Flash 8MB

CPU

32bit CPU 408MHz

I/O

DI/DO

Max 12DI/12DO

DI/DO level

Input: Passive NPN, public terminal isolated

DO type and load

Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

Analog I/O
(optional)

Max 4AI/2AO

AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO type (optional)

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed

High-speed function

High-speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
or 2 ABZ 60KHz + 1 AB phase 10 KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
High-speed counting + high-speed pulse < 480KHz

Connection

HMI

Type-C HMI download port

PLC

1 TYPE-C, 1 RS232 (program port)

1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port);
1 WIFI (occupy default RS232 port)

Software

HMI

Coolmay mView HMI Programming Software

PLC

Compatible with Mitsubishi GX Developer 8.86 and WORKS 2


Analog input:

The use of this part involves the query of the firmware version. The PLC main and minor version numbers are stored in the special registers D8001 and D8101 respectively. If necessary, please query the values of D8001 and D8101.
The analog input precision of Coolmay QM3G series HMI/PLC all-in-one machine is 12 digits. When using it, you can directly read the register value corresponding to each analog quantity. Ambient temperature, only for thermocouple type.
