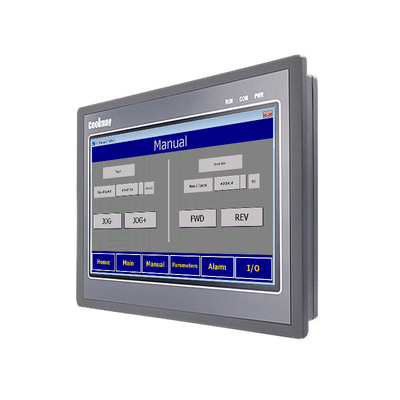

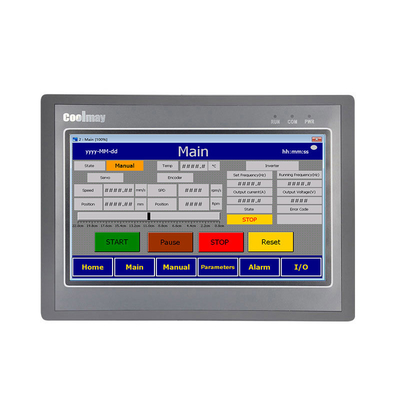

262*180mm Coolmay HMI 65536 Colors HMI Operator Panel Supports MODBUS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Backlight Time | 60,000 Hours | Backlight | LED |
|---|---|---|---|
| ROM | NOR Flash 16MB | Display Size | 262*180mm |
| RAM | 64MB (HMI When Stores Historical Data, Optional Ferroelectric Is Required) | Interface | -Download Port: Type-B, RS232, RS485 COM Ports: RS232, RS485 |
| Temperature | Ambient Environment: 0～50℃ | Storage Environment: -20～70℃ | Screen Size | 10 Inch |
| High Light | 262*180mm Coolmay HMI,65536 Colors Coolmay HMI,Coolmay HMI Operator Panel |
||
Product Description
Product Description:
The HMI Control Panel is an operator machine interface designed to control industrial processes. It is equipped with a 4-wire resistive panel, a 16MB NOR Flash ROM, and a 1024*600 pixel resolution. Its LED backlight ensures optimal visibility and its touch screen provides an intuitive and easy-to-use user experience. The panel is equipped with a Type-B download port, RS232 and RS485 COM ports, and supports MODBUS, free port and common PLC communication protocols. It is an ideal choice for any industrial application that requires a reliable, high-performance operator machine interface.
Features:
- Product Name: HMI Control Panel
- Protocol: RS232/RS485 Supports MODBUS, Free Port And Common PLC Communication Protocol
- Temperature: Ambient Environment: 0～50℃ | Storage Environment: -20～70℃
- ROM: NOR Flash 16MB
- Backlight: LED
- Screen Size: 10 Inch
- Operator Machine Interface: Yes
- HMI Human Machine Interface: Yes
- HMI Touch Screen Panel: Yes
Technical Parameters:
| Parameters | Details |
|---|---|
| Dimension | 275*194*36mm |
| Display size | 262*180mm |
| Protocol | RS232/RS485 Supports MODBUS, Free Port And Common PLC Communication Protocol |
| CPU | 32bit CPU 408MHz |
| Temperature | Ambient Environment: 0～50℃ | Storage Environment: -20～70℃ |
| Interface | Download Port: Type-B, RS232, RS485 COM Ports: RS232, RS485 |
| Power Supply | 12-24VDC±10%<150mA @ 24VDC |
| Contrast Ratio | 400:1 |
| Backlight | LED |
| ROM | NOR Flash 16MB |
| Colors | 65536 colors |
| HMI | Human Machine Interface |
Applications:
Coolmay TK6100FH is a 4-wire resistive panel, modbus HMI touch screen for industrial grade applications. It is certified with CE and ISO9001 to ensure the quality of the product. It has a 262*180mm display size, with a 275*194*36mm dimension and a 400:1 contrast ratio. It also has a 16MB NOR Flash ROM and supports RS232/RS485 and MODBUS protocols, as well as free port and common PLC communication protocols. It is available with a minimum order quantity of 1, with a negotiable price and a delivery time of 1-3 days. Payment terms include T/T, Western Union and MoneyGram, with an impressive supply ability of up to 15000 units per week.
Support and Services:
HMI Control Panel Technical Support and Services
Our HMI Control Panel is supported by a team of experienced technical and customer support representatives. Our professional technicians are available to provide the following services:
- Installations and Setups
- Hardware/Software Troubleshooting
- System Upgrades
- Data Migration
- Remote Access Support
- Phone/Email/Chat Support
Our customer support team is available 24/7 to provide assistance with all technical and customer service related inquiries. Our team is dedicated to providing you with the best possible service and support experience.
FAQ:
- Q: What is the Brand Name of the HMI Control Panel?
- A: The Brand Name of the HMI Control Panel is Coolmay.
- Q: What is the Model Number of the HMI Control Panel?
- A: The Model Number of the HMI Control Panel is TK6100FH.
- Q: Where is the HMI Control Panel from?
- A: The HMI Control Panel is from China.
- Q: Does the HMI Control Panel have any certifications?
- A: Yes, the HMI Control Panel has CE and ISO9001 certifications.
- Q: What is the minimum order quantity for the HMI Control Panel?
- A: The minimum order quantity for the HMI Control Panel is 1.
