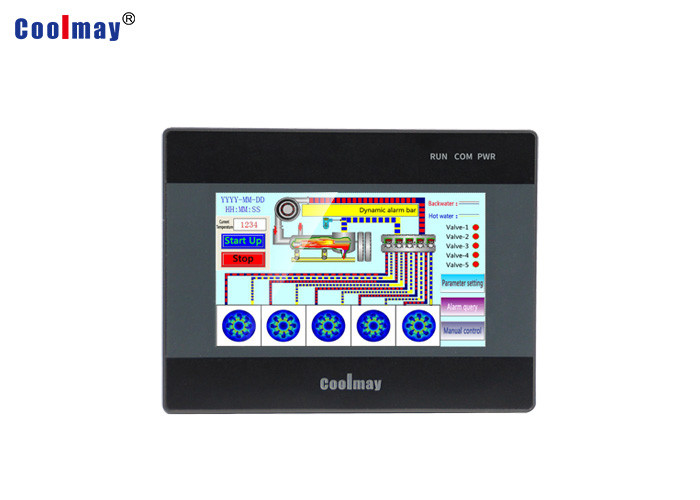

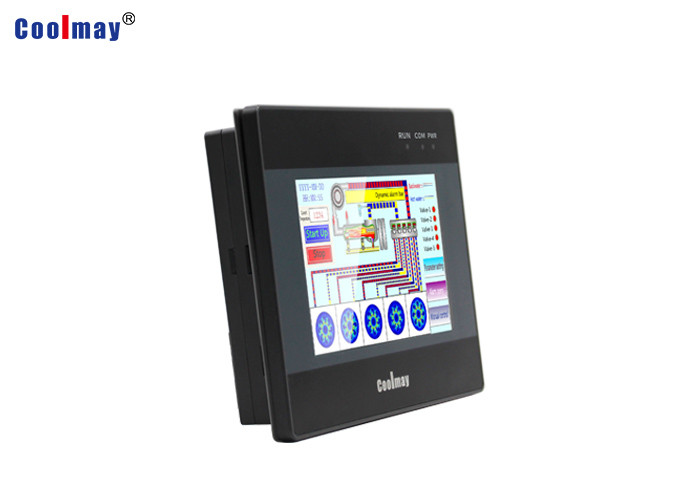

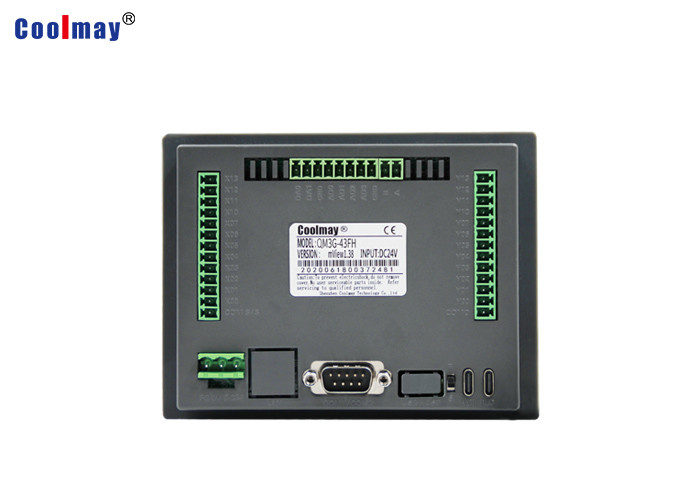

Portrait Display PLC HMI Panel 4AI 2AO 12DI 12DO 4.3" TFT

Place of Origin Shenzhen
Brand Name Coolmay
Certification CE
Model Number QM3G-43FH
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working days
Payment Terms T/T, Western Union
Supply Ability 100,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension 134*102*34mm Cutout Size 120*94mm
Program Port 1 TYPE-C, 1 RS232 () DI/DO Max 12DI/12DO
High-speed Counting Single Phase 6 Channel 60KHz, Or 2 AB 60KHz + 1 AB 10KHz High-speed Pulse 8 Channels, Y0-Y3 Is 100KHz, Y4-Y7 Is 10KHz.
HMI Software MView HMI Programming Software PLC Software GX Developer 8.86 And WORKS 2
High Light

Portrait Display PLC HMI Panel

,

4AI 2AO PLC HMI Panel

,

12DI 12DO HMI PLC Board

Leave a Message
Product Description

Supports Portrait Display Integrated HMI PLC Max 4AI/2AO 12DI/12DO







Special customized PWM -- as Analog output

The following parameters are required for model selection:

1) the output voltage of the required PWM;

2) the output frequency of the required PWM;

3) Confirm the numbers of customized PWM, up to 8 PWMs. (depending on analog outputs that customer make).

4) Whether the customized PWM coexists with other analog. (If the product is separately equipped with analog, the analog output terminals DA0~DA3 are a group, and DA4~DA7 are a group. When custom PWM of 3G series products, Only when the output frequency is 21KHz,it can be used with other analog group. ).



Parameter:

Display Dimension 134*102*34mm
Cutout size 120*94mm
Type 4.3" TFT
Feature 60K-color resistive touch screen, supports portrait display
Memory RAM 64MB
ROM NOR Flash 8MB
CPU 32bit CPU 408MHz
I/O DI/DO Max 12DI/12DO
DI/DO level

Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact

DO type and load Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

Analog I/O

(optional)

Max 4AI/2AO
AI type (optional)

Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

AO type (optional) 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed
High-speed function High-speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

or 2 ABZ 60KHz + 1 AB phase 10 KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

Connection HMI Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port
/
PLC 1 TYPE-C, 1 RS232 (program port)

1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port);

1 WIFI (occupy default RS232 port)

Software HMI Coolmay mView HMI Programming Software
PLC Compatible with GX Developer 8.86 and WORKS 2


Conventional PWM

  • Support Y0-Y7 total 8 channels (please select transistor MT output);

  • There are no restrictions on pulse width and cycle, both in milliseconds (ms).

Special customized PWM-analog output port

The following parameters need to be provided during customizing selection:

Portrait Display PLC HMI Panel 4AI 2AO 12DI 12DO 4.3" TFT 0

  • The output voltage of the required PWM;

  • The output frequency of the required PWM;

  • Confirm the number of customized PWM, up to 4 channels of PWM can be customized (specifically, it depends on the number of analog outputs of the model selected by the customer).

  • Customize whether PWM coexists with other analog quantities. (If the product is additionally equipped with analog, analog output terminals DA0~DA3 are a group, DA4~DA7 are a group. When QM3G customizes PWM, the output frequency can only be installed with other analogs in a group when the output frequency is only 21KHz ).

  •
