8 Axis Servo Control PLC Logic Controller GX WORKS2 Password Protection

Place of Origin Shenzhen, China
Brand Name COOLMAY
Certification CE
Model Number L02M32R
Minimum Order Quantity 1 set
Price USD 121-147 per set
Packaging Details Carton packaging
Delivery Time 3-7 work days
Payment Terms T/T, Western Union
Supply Ability 100,000 Sets per month
Product Details
Expansion Model Max Limit Of 31 Units Program Capacity 32k Steps
Do Type Relay Output Digital I/O 16DI / 16DO
Rated Input Voltage 24VDC Software Compatible With GX WORKS 2
High Light

200KHz PLC Logic Controller

,

GX WORKS2 PLC Logic Controller

,

200KHz plc programmable logic controller

Leave a Message
Product Description

8 Axis Servo Control PLC Logic Controller GX WORKS2 Password Protection

PLC Logic Controller Ethernet 8 Axis Servo Control Compatible With GX WORKS 2 Password Protection



CoolmayL02 series PLC is a high-function general-purpose controller specially designed for automation equipment.L02 series modules can be expanded up to 31 units. The appearance is simple and neat, the dark gray case is anti-fouling and anti-dirty, suitable for harshindustrial environments, and has the characteristics of recyclability, low pollution, and lead-free. lt complies with international environmental protection regulations and the concept of resource reuse.



The host has a built-in communication network and communicates with the Ethernet / IP industrial network to realize high-speed data transmission. Dial switch to set up lP, quickly build a network environment, built-in multiple sets of industry-specific functional modules, convenient for customer applications, and can set multiple password protection to improve system security.





Programming language Ladder diagram(LD) / lnstruction list / Sequential function chart(SFC)
Program capacity 32k steps
Expansion model Max limit of 31 units: max 12 analog input/output respectively
Max l/O FX3U mode: 512 points; FX3G mode: 256 points (the sum of input and output points)
CPU Digital I/O 16DI / 16DO
CPU Analog I/O /
High-speed pulse 4-axis 200KHz+4-axis 100KHz
High-speed counter 6 channels 60KHz
Do type LO2M32T/LO2M24T: Transistor output, load maximum 500mA, low level NPN, COM connected to negative
LO2M32R/LO2M24R: Relay output, load maximum 2A, dry contact, COM can be connected to positive ornegative
Default COM Type-C, RS-232, RS-485*2, Ethernet, CAN
Protocol Mitsubishi programming port Modbus RTU, Modbus TCP, Modbus UDP, freeport protocol, CAN, Ethernet/IP, Mitsubishi BD board
Data backup function No
battery storage
Program Flash ROM
Retentive area MRAM has no write limit
Calendar(RTC) Commercially available batteries CR1620(optional)
Self-diagnosis CPU abnormalities, internal memory problems, etc
Rated input voltage 24VDC(土10%)
Software Compatible with WORKS 2
Detailed info. refer to Coolmay L02 Series PLC Progarmming Manual L02 Series PLC Controller User Manual

Features:

L02 series CPU supports up to 8 axis servo control,6 groups of high-speed counter inputs

Support digital, analog and temperature module expansion (max 31 units)

Provide high-speed computing speed: the fastest execution speed of basic instructionscan reach 0.35us

Provide multiple motion control commands such as position, speed, positioning and interpolation

Built-in maximum 16DI/16DO,RS-232/RS-485*2,Ethernet and CAN interfaces

L02 host motion controller has built-in multiple l/O andcommunication interfaces, which can meet the market demandfor compactness, high performance and high value

Ethernet/IP solution:

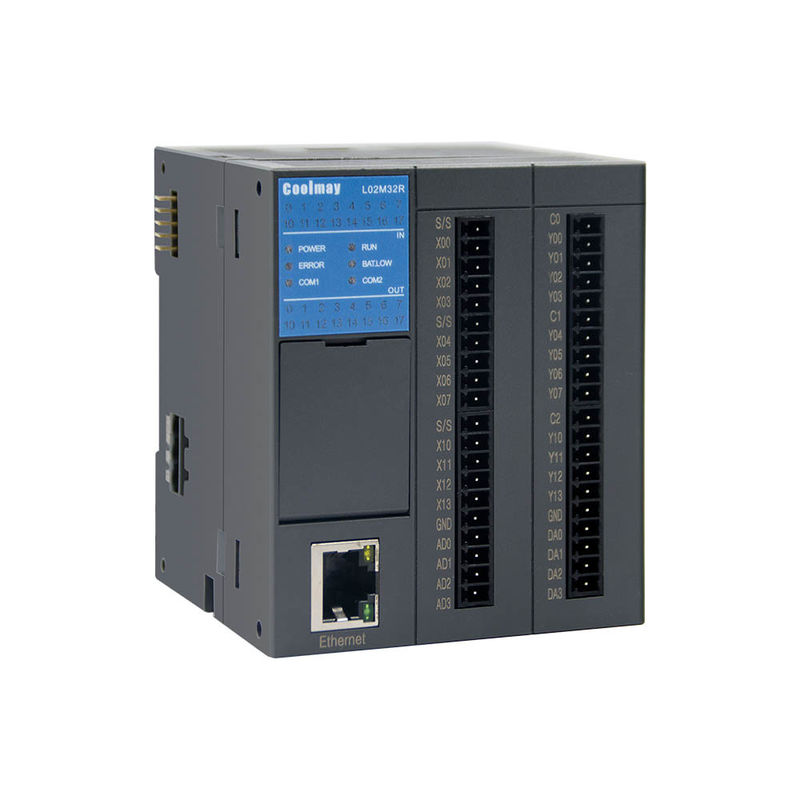

8 Axis Servo Control PLC Logic Controller GX WORKS2 Password Protection 0

The communication bus protocol adopts the standard Ethernet/IP communi-cation bus, which can easily realize barrier-free connection with Ethernet/IPPLC or industrial computer. The communication interface mode is 2 RJ45 FastEthernet interfaces, and the internal port switching function has been implemented, so multiple slave stations can be easily cascaded withoutadding a switch.

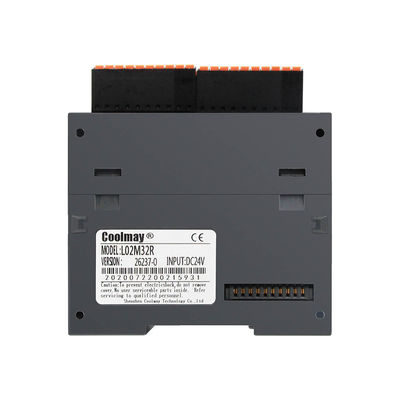

8 Axis Servo Control PLC Logic Controller GX WORKS2 Password Protection 1
