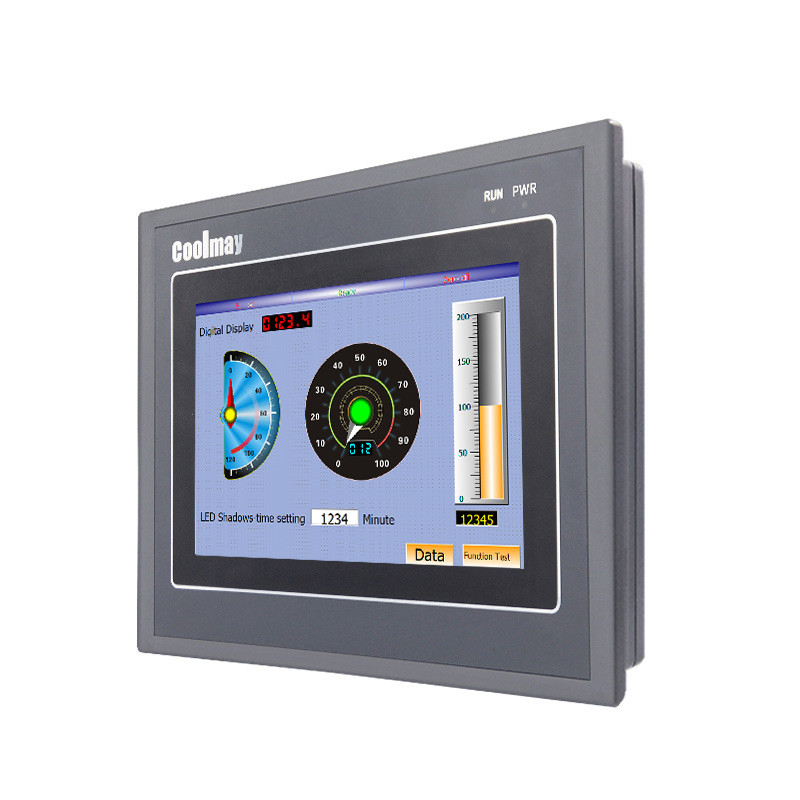

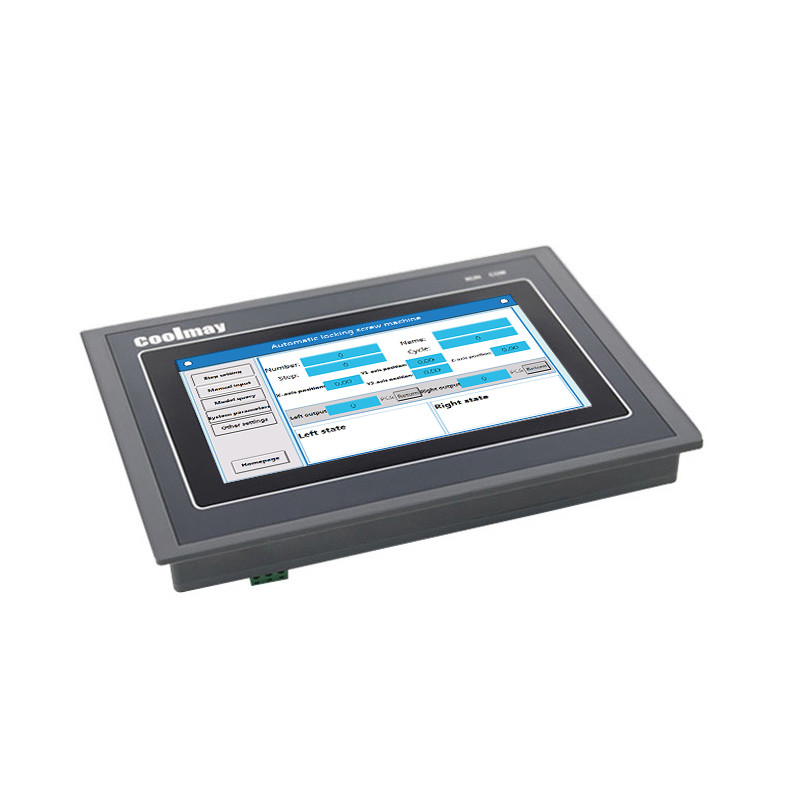

Industrial Automation HMI PLC Combo 7" Analog Input Ouput High Speed
| Brand Name: | Coolmay |
| Model Number: | QM3G-70KFH |
| MOQ: | 1 unit |
| Price: | Details Need To Be Negotiated |
| Payment Terms: | T/T,Paypal, Western Union, Credit Card |
| Supply Ability: | 1500 pcs per week |
Industrial Automation HMI PLC Combo
,HMI PLC Combo 7"
,High Speed HMI Touch Screen PLC
Industrial Automation Plc Analog Input Ouput HMI PLC Combo
Quick detail:
- Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high speed functions,etc..
- Compatible with Fx3G/FX3U/Fx3S PLC,fast operation.
- Up to 30DI/30DO,16AD/8DA.
- Default 2 PLC programming ports, 1 HMl download port.
- Supports optional one or two Rs485, CAN, WIFl, network port on PLC, and supports optional Rs232,Rs485,network port (under development)on HMI.
- Supports multi-channel high speed count and pulse functions.
- 32K-step program capacity and 32Kpower retentive registers.Supports interruption, linear arc interpolation and PID self-tuning.
- Supports special encryption.HMl and PLC can be encrypted respectively.Set PLC password as 12345678 can prohibit reading program completely.(Note:PLC only supports 8-bit password.)
Packing List
- 1*HMI PLC All-in-One
- 1*Free HMI Downloading cable
- 1*Free PLC Progamming cable
Paramaters of HMI Part:
size of HMI: 7 inch
cutout size: 217*154mm
Resoution:800*480
RAM:NOR Flash 16MB
ROM:64MB
CPU:32bit CPU 408MHz
com ports:1*type B download port, 1*RS232
Software: mView
Paramters of PLC Part:
Digital I/O: Max 30DI/30DO(Max 28R)
I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output
DO type: transistor(MT) or relay(MR) or mixed(MRT)
Analog I/O(optional): max 16AI/8AO
AI(Optional):
AO(Optional):
com port:1*mini USB,1*RS485,1*RS232
software: WORKS 2/ GX developer 8.86
We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)
| EX3G-70KFH | ||
| Display | Display size | 154*87mm |
| Resolution | 800*480 pixels | |
| Type | 7.0"TFT | |
| Feature | 60K-color resistive touch screen, supports portrait display | |
| Memory | RAM | NOR Flash 16MB |
| ROM | 64MB | |
| CPU | 32bit CPU 408MHz | |
| I/O | DI/DO | 12DI/12DO or 20DI/18DO or 24DI/20DO or 30DI/30DO (max 28MR) |
|
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
||
| DO type |
Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
|
|
Analog I/O (optional) |
Max 16AI/8AO | |
| AI type (optional) |
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
|
| AO type (optional) |
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2AO for 1 minus voltage) |
|
| High-speed function | High-speed counting |
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
|
| Connection | HMI | Type-B HMI download port |
| 1 RS485 or 1 RS232 | ||
| PLC | 1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port) | |
| CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port) | ||
| Software | HMI | mView |
| PLC | WORKS 2 | |
Real Application:
