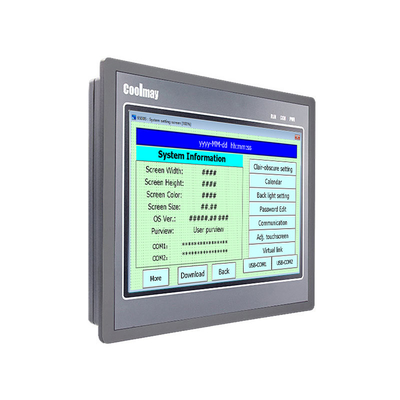

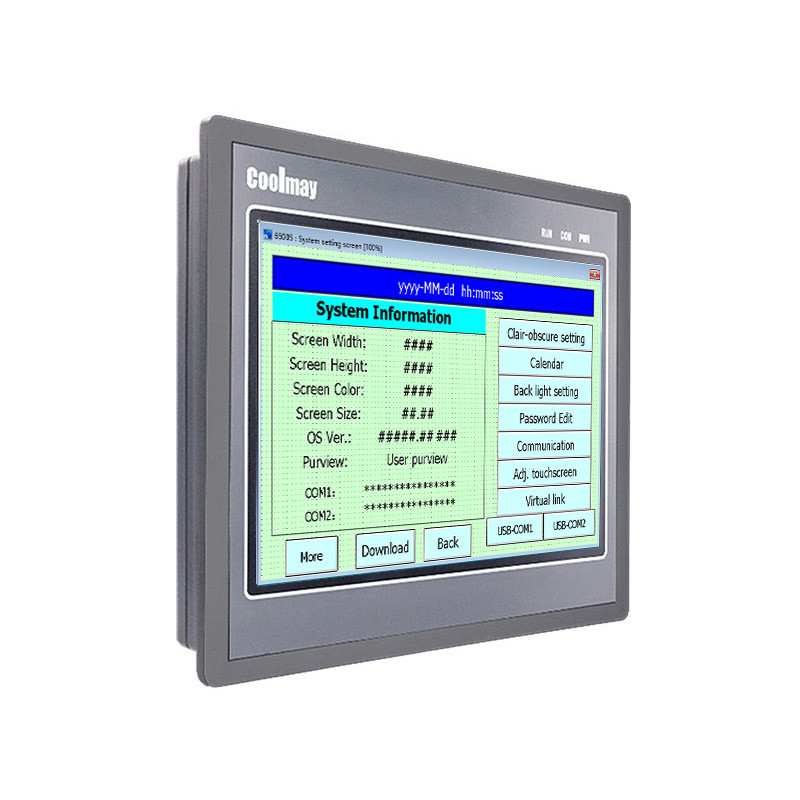

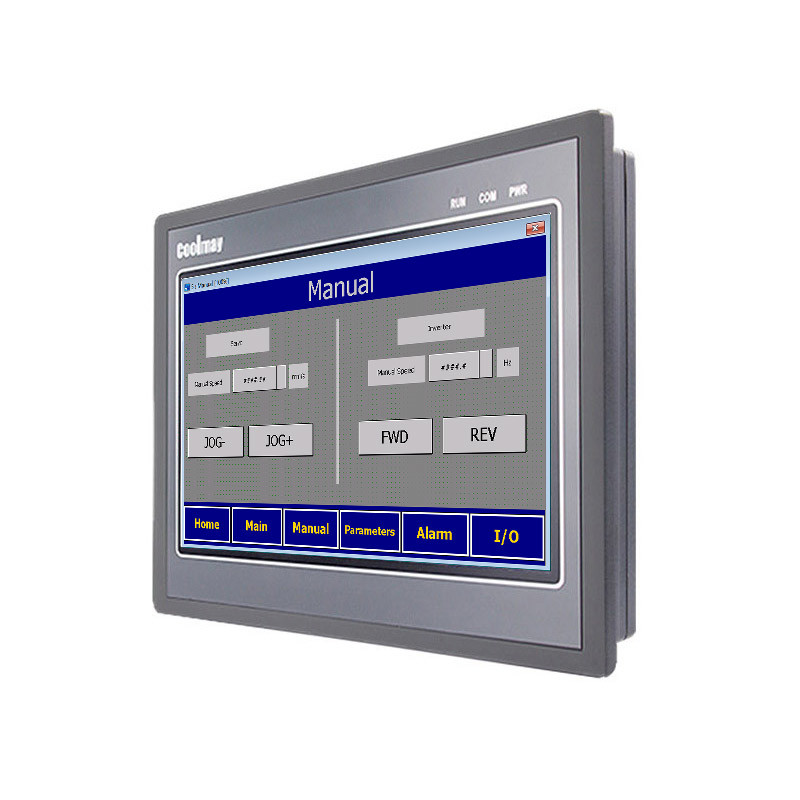

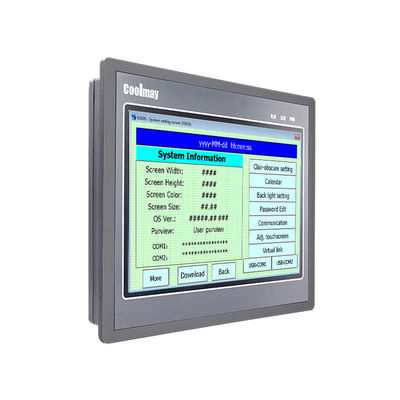

10 Inch HMI Touch Screen RS485 Thin Light Embedded For Automation Industry

Place of Origin CHINA
Brand Name Coolmay
Certification CE
Model Number TK6100FH
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Packed with standard carton box
Delivery Time 3-8 working day
Payment Terms T/T, Western Union, MoneyGra
Supply Ability 100,000 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Download Port Type-B, RS232, RS485 COM Ports RS232, RS485,MODBUS
Consumption 24V Resolution (pixels) 1024*600
High Light

1024*600 HMI Touch Screen


RS485 HMI Touch Screen


Thin HMI Touch Panel

Leave a Message
Product Description

10 Inch HMI Touch Screen RS485 For Automation Industry
Product Description oF HMI panel:


 Cutout size262*180mm
Display size222*125mm
WeightAppox. 0.7 kg
DISPLAYDisplay10.1" TFT
 Resolution1024*600 pixels
Contrast ratio400:01:00
Backlight time60,000 hours
Display color65536 colors
Touch type4-wire resistive panel

NOR Flash 16MB


64MB (HMI when stores historical data, optional ferroelectric is required)

CPU32bit CPU 408MHz
INTERFACEDownload portType-B, RS232, RS485
 COM port1 RS232, 1 RS485
Optional1 WIFI (occupy default RS485 port)
ProtocolSupport MODBUS, free port and common PLC communication Protocol





Thin and light embedded

Can be easily installed in various complex industrial application environments.

Conformal coating protection for motherboard

In various harsh industrial environments, it is more effective against shock, moisture,high and low temperature, and chemical corrosion.

Integrated rich industrial interfaces

RS232, RS485, USB2.0, WIFI, Ethernet

Onboard 408MHz high performance 32Bit industrial grade CPU

has fast running speed,high data processing efficiency and strong anti-interference ability.

Data security upgrade

This series of HMl supports password man-agement functions. Users can set passwords for specific registers, buttons,and screens, and add permissions to ensure data security.
