32K Retentive Digital Touch Screen Controller EX3G-70i 32bit CPU 408MHz Analog Digital Output
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Support Interrupt, Linear Arc Interpolation, PID Auto-tuning. 32K Program Capacity, 32K Retentive Register | Dimension | 226*163*35.6mm |
|---|---|---|---|
| Output Signal | Analog, Digital | Resolution | 800x480 |
| Name | HMI PLC All In One | High-speed Counting | 6 Channels Single-phase 60KHz, Or 2 Channels AB (Z) Phase 30KHz + 1 Channel AB Phase 5KHz |
| CPU | 32bit CPU 408MHz | Input Signal | Analog, Digital |
| Highlight | 32K Retentive Digital Touch Screen Controller,32bit Digital Touch Screen Controller |
||
Product Description
226*163*35.6mm Digital Touch Screen Controller EX3G-70i 32bit CPU 408MHz Analog, Digital Output
Product Description:

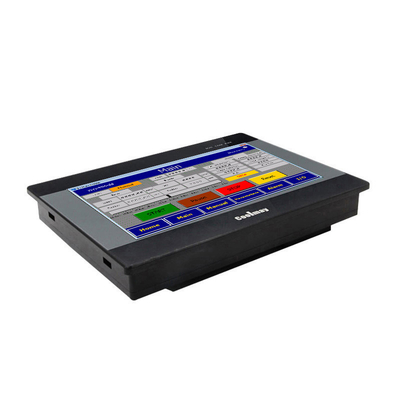

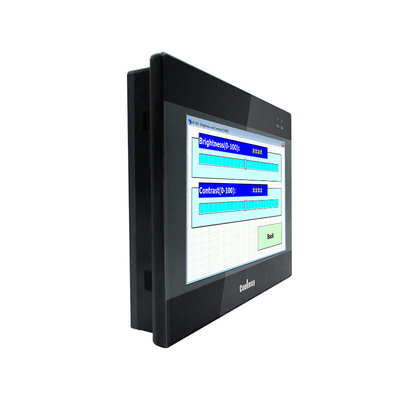

HMI PLC All In One is a reliable automation control solution for industrial applications. It is designed with a 7 inch TFT LCD touch screen controller, offering 800x480 resolution for clear display. Featuring DC 24V input voltage, this device also provides powerful features such as support for interrupt, linear arc interpolation, and PID auto-tuning. With a 32K program capacity and 32K retentive register, it is ideal for controlling industrial processes. This product is compact and comes with a dimension of 226*163*35.6mm.
Features:
- Product Name: HMI PLC All In One
- Warranty: 18 Month
- Input Signal: Analog, Digital
- CPU: 32bit CPU 408MHz
- Cutout size: 217*154mm
- Display: TFT LCD
- 7 inch touch screen: Yes
- Automation control: Yes
- Industrial control: Yes
Technical Parameters:
| Features | Name |
|---|---|
| Support Interrupt, Linear Arc Interpolation, PID Auto-tuning. 32K Program Capacity, 32K Retentive Register | HMI PLC All In One |
| Size | Protection Level |
| 7 Inch | IP65 |
| Display | Warranty |
| TFT LCD | 18 Month |
| Resolution | CPU |
| 800x480 | 32bit CPU 408MHz |
| Output Signal | Input Voltage |
| Analog, Digital | DC 24V |
Applications:
Garment making equipment includes a screw machine that can be shipped with a program, a tapping machine, an ultrasonic cleaning machine, and a masterbatch machine. Tests machines include a laminating machine, a hot pressing machine, a battery equipment/spot welding machine, an UV lamp curing, and an ultrasonic cleaning equipment. Further, loading and unloading, SMT peripheral equipment, a terminal machine, and an injection molding machine (vertical injection molding machine) are also part of the equipment.
Environmental protection equipment consist of LED lamps, a defoaming machine, a labeling machine, a laser marking machine, a test fixture, a reflow soldering/shoe machine equipment, a SKD stepping/testing equipment/laminating, a power distrubution cabinet, and a testing test.
Customization:
HMI PLC All In One
Coolmay's EX3G-70i HMI PLC All In One offers a 7 inch touch screen, PLC controller, and machine controller in one.
- Brand Name: Coolmay
- Model Number: EX3G-70i
- Place of Origin: China
- Certification: CE, ISO9001
- Minimum Order Quantity: 1
- Price: Negotiable
- Packaging Details: Carton box
- Delivery Time: 1-3 working days
- Payment Terms: T/T, AliPay, PayPal
- Supply Ability: 1000 pcs/day
- Size: 7 Inch
- Protection Level: IP65
- Resolution: 800x480
- Dimension: 226*163*35.6mm
- High-speed counting: 6 Channels Single-phase 60KHz, Or 2 Channels AB (Z) Phase 30KHz + 1 Channel AB Phase 5KHz
Support and Services:
HMI PLC All In One Technical Support and Service
We provide comprehensive technical support and service for HMI PLC All In One. Our goal is to ensure that our customers are always satisfied with our products and services.
We offer timely and reliable technical support and maintenance. We can provide on-site support or remote technical support as needed. Our technical support team is trained and qualified to answer any questions you may have about our products and services.
We also provide a wide range of services, including product installation and configuration, system upgrades, troubleshooting, and software training. Our certified technicians are available to help you with any issues you may have.
If you have any questions or concerns, please do not hesitate to contact us. We are committed to providing the highest level of customer service and satisfaction.
