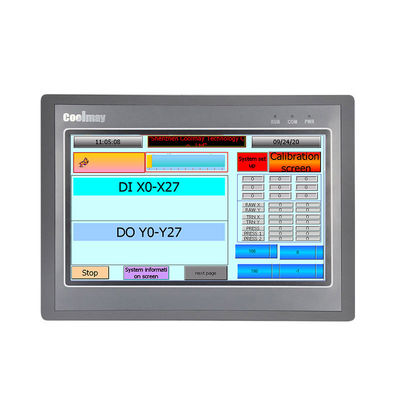

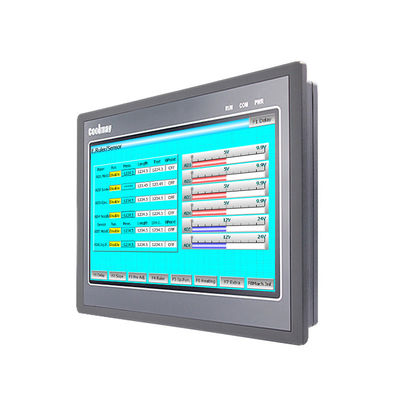

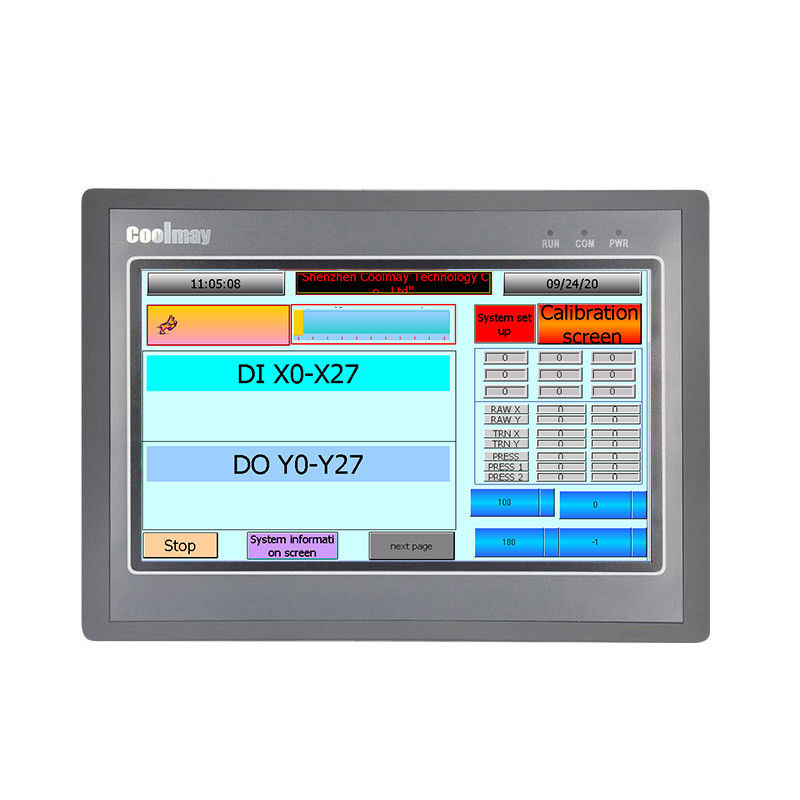

10In IP65 Front Panel HMI Control Panel 4 Wire Resistive Panel 145mA/24V

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number TK6100FH
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Dimension 275*194*36mm Cutout Size 262*180mm
Display Size 222*125mm Display 10.0" TFT
High Light

HMI Control Panel IP65


10In HMI Control Panel


4 Wire Resistive HMI Control Panel

Leave a Message
Product Description

10-Inch IP65 Front Panel HMI Control Panel 222*125 32 Bit CPU 408MHz 4-Wire Resistive Panel 145mA/24V




  1. Supports any-format static images and GIF animation
  2. Supports all fonts in Windows
  3. Provide a large number of vector libraries and component libraries
  4. Button sound and alarm sound can be set by yourself
  5. Multi-language, support to display multiple languages in the same screen, and have the function of translator
  6. Multiple communication protocols, support each communication port to connect with multiple controllers


Model TK6100FH
Specs Dimension 275*194*36mm
Cutout size 262*180mm
Display size 222*125mm
Weight(kg) 0.7 kg
Display Display 10.1" TFT



Brightness 300cd/m²
Contrast ratio 400:1
Backlight LED
Backlight time 60,000 hours
Display color 65536 colors
Touch type 4-wire resistive panel
Storage ROM NOR Flash 16MB
RAM 64MB (HMI when stores historical data, optional ferroelectric is required)
CPU 32bit CPU 408MHz
Interface Interface

- Download port: Type-B, RS232, RS485

- COM ports: RS232, RS485

Protocol RS232/RS485 supports MODBUS, free port and common PLC communication protocol
Calendar Yes
Input Voltage 12-24VDC±10%<150mA @ 24VDC
Consumption 145mA/24V
Protection Class IP65 (front panel)
Temperature Ambient environment: 0~50℃ | Storage environment: -20~70℃
Humidity 20%~90% RH
Certification CE

CoolMay TPWorks HMI programming software

Detailed info. refer to Coolmay TK Series HMI Programming Manual CoolMay TK HMI User Manual

  1. Service advantages


    1. Production equipment

    Coolmay, which has 15 years of expertise in automation solutions for various industries, has6000 square meters of production space and 10 production lines, many imported high-end smtplacement equipment and testing equipment, and its monthly output can reach 50,000 units.

    2. Certification

    Coolmay has passed the ISO9001 quality management system certification and the national high-tech enterprise certification. lts products have obtained a number of utility model patent certificatesand invention patents, and have repeatedly won many awards such as "Technical lnnovationAward" and "Innovative Product Award".

    In addition, all Coolmay products have passed CE & RoHS certification.



    1.Q: How about the warranty ?

    A: We provide 12 months warranty for all the goods from us , and you can refund the goods with any quality problem in 15 days.

    2.Q: How soon can I get my goods after I pay for the order?

    A: We have the professional production line. It is about 1-2 weeks after you make the order. Certainly we could also arrange it first if you have urgent order.

    3.Q: Are you a manufacturer or trade company?
    A: We are both factory and trae company, we have engineers for study & design and workers for producing and operating etc. We could support you one-stop products and service.

    4.Q: What about delivery ?

    A: We have DHL/FEDEX/EMS/UPS forwarder with competitive price if you dont't have freight forwarder.
    5. Q: Do you have a CE certificate?
    A: Yes, for the products we exported, we could offer the CE for your customs.
