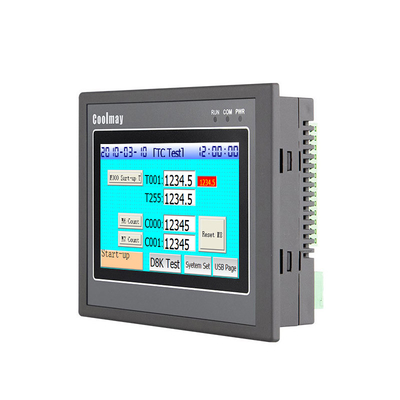

5" TFT EX3G 151*96*36mm PLC Touch Panel ARM9 Core 400MHz PLC HMI All In One

Place of Origin CHINA, GONGDONG
Brand Name Coolmay
Certification CE
Model Number EX3G-50KH
Minimum Order Quantity 1 peice
Price Negotiable
Packaging Details carton
Delivery Time 3-8 works days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 15000 Units Per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension 151*96*36mm Power Consumption 5-7W
COM Port 1 Type-C (HMI Download Port); 1 USB 2.0 Port Operation System WINCE 5.0 Version
Highlight

WINCE 5.0 PLC Touch Panel

,

ARM9 Core PLC Touch Panel

,

400MHz PLC HMI All In One

Leave a Message
Product Description

5" TFT EX3G 151*96*36mm Plc Touch Panel ARM9 core 400MHz Plc Hmi All In One



Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.



PRODUCT DESCRIPTION of HMI PLC ALL IN ONE



Feature:

3. Input

Digital input: 12 channels digital input.

Analog input: 4 AD inputs can be installed.

Optional: E/K/S/T/J thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/ 0~10V/0~5V/0~20mA/4~20mA or mixed type and other special specifications (thermocouple supports negative temperature).

4. High-speed counting input

Single phase 6 channels 60KHz high-speed counting or 2 channels AB (Z) phase 60KHz plus 1 channel AB phase 10KHz.

5. Output

Digital output: 12 channels digital outputs (Y0~Y3 are MOS tubes).

Option: Relay(MR) or MOS(MT); Relay output: max load 5A, MOS output: max load 2A.

Analog quantity: 2 DA outputs can be installed. Option:0~10V /0~5V/ 0~20mA/ 4~20mA or mixed.

6. High-speed pulse output

Support 8-channel pulse output. Y0-Y3 is 100KHz, Y4-Y7 is 10KHz; high-speed counting plus high-speed pulse total transmission cannot exceed 480KHz.

  1.

  2. Display Dimension 150*93*32mm
    Resolution

    43KH:480*272 pixels

    50KH:800*480 pixels

    Type 4.3”/5” TFT
    Features

    Support interrupt, linear arc interpolation, PID auto-tuning.

    32K program capacity, 32K retentive register

    Memory RAM 64MB
    ROM 128MB
    CPU ARM9 400MHz
    I/O DI/DO 12DI/12DO

    Input: Passive NPN, public terminal isolated

    Transistor output: Low level NPN, COM connect to negative;

    Relay output: Normally open dry contact

    DO type

    Relay(MR) or MOS(MT)

    (Relay output: max load 5A/ MOS output: max load 2A)

    Analog I/O (optional) Max 4AI/2AO
    AI type (optional) Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
    AO type (optional) 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed
    High-speed function High-speed counting

    Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

    or 2 ABZ 60KHz + 1 AB phase 10 KHz

    High-speed pulse

    8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

    High-speed counting + high-speed pulse < 480KHz

    Connection HMI 1 HMI download port,1 USB 2.0 port
    1 RS232 port
    PLC 1 Mini type B USB port, 1 Rs232 port (Program port,also can be used as COM port)
    1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port)
    Software HMI CoolMayHMI HMI programming software
    PLC Compatible with Mitsubishi GX Developer8.86 and WORKS 2




Maintenance and service

  • Your products will be 18-month warranty excluding artificial damage.
  • You would receive unlimited support via video, phone or email.
  • OEM/ODM is supported, MOQ is 200 sets. More modules or functions can be customized as per your requirements.
