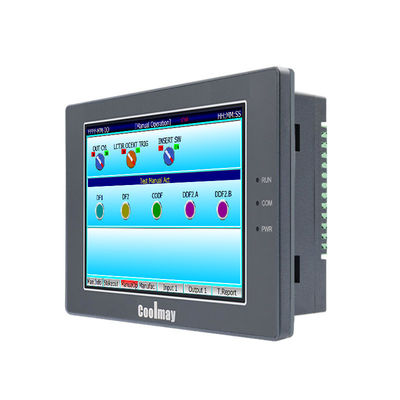

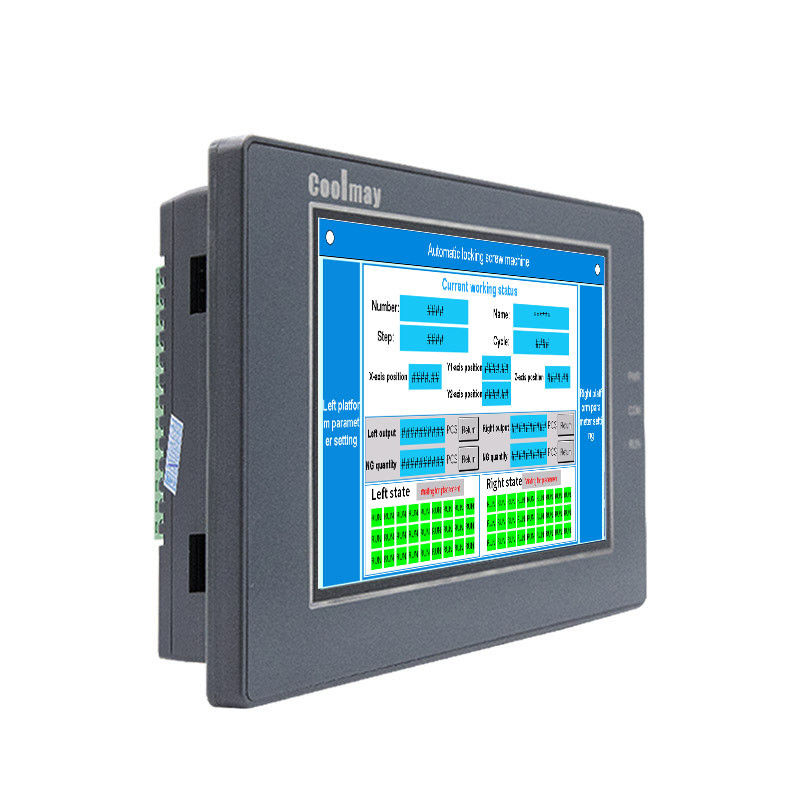

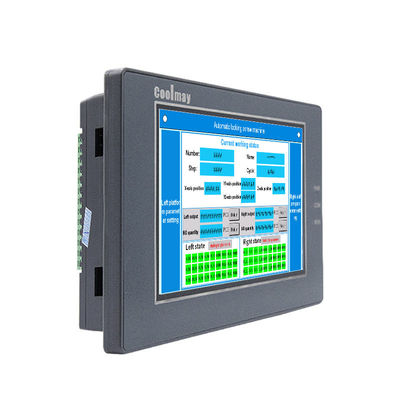

5" TFT Coolmay PLC HMI 151*96*36mm RS232 RS482 PLC Touch Panel

5" TFT Plc Panel 151*96*36mm Plc Touch Panel Rs232 Rs482 Plc Hmi All In One

Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.

PRODUCT DESCRIPTION of HMI PLC ALL IN ONE

Feature:

3. Input

Digital input: 12 channels digital input.

Analog input: 4 AD inputs can be installed.

Optional: E/K/S/T/J thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/ 0~10V/0~5V/0~20mA/4~20mA or mixed type and other special specifications (thermocouple supports negative temperature).

4. High-speed counting input

Single phase 6 channels 60KHz high-speed counting or 2 channels AB (Z) phase 60KHz plus 1 channel AB phase 10KHz.

5. Output

Digital output: 12 channels digital outputs (Y0~Y3 are MOS tubes).

Option: Relay(MR) or MOS(MT); Relay output: max load 5A, MOS output: max load 2A.

Analog quantity: 2 DA outputs can be installed. Option:0~10V /0~5V/ 0~20mA/ 4~20mA or mixed.

6. High-speed pulse output

Support 8-channel pulse output. Y0-Y3 is 100KHz, Y4-Y7 is 10KHz; high-speed counting plus high-speed pulse total transmission cannot exceed 480KHz.

1.

2. Display	Dimension	150*93*32mm
   	Resolution	43KH:480*272 pixels 50KH:800*480 pixels
   	Type	4.3”/5” TFT
   	Features	Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register
   Memory	RAM	64MB
   	ROM	128MB
   	CPU	ARM9 400MHz
   I/O	DI/DO	12DI/12DO
   		Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
   	DO type	Relay(MR) or MOS(MT) (Relay output: max load 5A/ MOS output: max load 2A)
   	Analog I/O (optional)	Max 4AI/2AO
   	AI type (optional)	Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
   	AO type (optional)	0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed
   High-speed function	High-speed counting	Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
   	High-speed pulse	8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz
   Connection	HMI	1 HMI download port,1 USB 2.0 port
   		1 RS232 port
   	PLC	1 Mini type B USB port, 1 Rs232 port (Program port,also can be used as COM port)
   		1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port)
   Software	HMI	CoolMayHMI HMI programming software
   	PLC	Compatible with Mitsubishi GX Developer8.86 and WORKS 2
