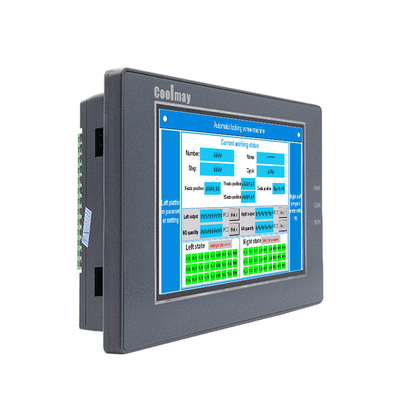

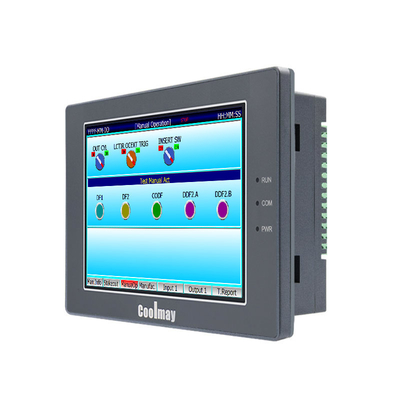

Automation Control Coolmay PLC HMI 275*194*36mm 10.1'' TFT With Integrated PLC HMI Panel

PLC Automation Control 275*194*36mm 10.1”TFT hmi with integrated PLC HMI Panel

Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.

PRODUCT DESCRIPTION of HMI PLC ALL IN ONE

Feature:

1. Structure

Highly integrated, compact structure, cost saving and space saving.

2. Programming Software

HMI: Adopts CoolMayHMI touch screen programming software.

PLC: Compatible with Mitsubishi Works 2/ GX Developer 8.86.

3. Input

Digital input: Max 30 channels digital input.

Analog input: Up to 5 AD inputs can be installed.

Optional: E/K/S/T/J thermocouple/PT100/PT1000/NTC10K/NTC50K/NTC100K/ 0~10V/0~5V/0~20mA/4-20mA/ 5V~5V/-10V~10V or mixed type and other special specifications (thermocouple supports negative temperature).

4. High-speed counting input

Single phase 6 channels 60KHz high-speed counting or 2 channels AB (Z) phase 60KHz plus 1 channel AB phase 10KHz.

5. Output

Digital output: Max 30 outputs (Y0~Y3 are MOS tubes).

Option: Relay(MR) or transistor(MT) or mixed(MRT); Relay output: max load 5A, transistor output: max load 500mA.

Analog quantity: 2 DA outputs can be installed at most.

Option :0~10V/0~5V/0~20mA/4~20mA/mixed/-5~5V/-10~10V(2DA for 1 minus voltage).

1.

2. Memory	RAM	128MB
   	ROM	128MB
   	CPU	CORTEX A8 720MHz-1GHz
   I/O	DI/DO	12DI/12DO or 20DI/18DO or 24DI/20DO or 30DI/30DO
   		Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact
   	DO type	Relay(MR) or transistor(MT) or mixed(MRT) (Relay output: max load 5A/ transistor output: max load 500mA)
   	Analog I/O (optional)	Max 16AI/8AO
   	AI type (optional)	Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ -5V~5V/ -10V~10V/ 0~20mA/ 4~20mA/ mixed
   	AO type (optional)	0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2DA for 1 minus voltage)
   High-speed function	High-speed counting	Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
   	High-speed pulse	8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz
   Connection	HMI	1 HMI download port,1 USB 2.0 port
   		1 RS485 or 1RS232 port Ethernet port (can not coexist with PLC Ethernet port)
   	PLC	1 Mini type B USB port, 1 Rs232 port (Program port,also can be used as COM port)
   		1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port), CAN (2.0A/B), Ethernet port (can not coexist with HMI Ethernet port), WIFI (will occupy the default Rs232)
   Software	HMI	CoolMayHMI HMI programming software
   	PLC	Compatible with Mitsubishi GX Developer8.86 and WORKS 2
