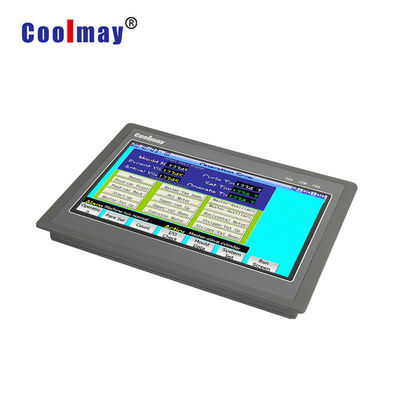

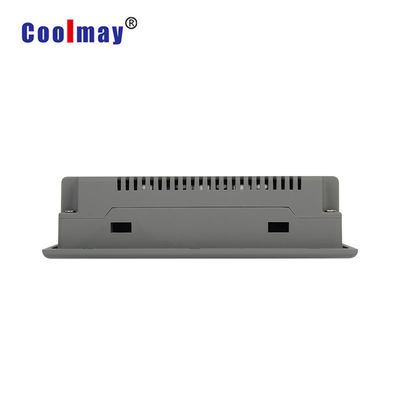

Macro Instructions WINCE 5.0 System HMI Control Panel 128MB ROM 400MHz
| Brand Name: | Coolmay |
| Model Number: | MT6070H |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100,000 pcs per month |
WINCE 5.0 System HMI Control Panel
,Macro Instructions HMI Control Panel
,128MB ROM HMI Touch Panel
HMI Control Panel Macro Instructions WINCE 5.0 Operating System
Function Instruction:
■ Supported PLCs
We support the following manufactures, Mitsubishi. Omron. Panasonic. Siemens. ModBus RTU. ModBus ASCII. ModBus TCP. LG. Delta. Fatek. Vigor and so on. As for new brands, we will supply relevant communication protocol for updating.( The brands referred above are reserved by the relevant manufactures)
■ Convenient operation and macro instructions
By operating macros can help PLC to deal with complicated computation, together with the communication macro, users can draft the communication protocol by themselves and then the element can communicate with certain system through COM port.
■ Ethernet communication port (Only available for MT60 series HMI as optional)
10/100BASE-T, ethernet communicate port provide fast data exchange function. Any TP can organize network to perform aggregate remote control. Data can also be uploaded in a short time via Ethernet.
Parameter:
| Specs | Dimension | 212*148*40mm |
| Cutout size | 194*138mm | |
| Display size | 154*87mm | |
| Weight(kg) | Appox. 0.54 kg | |
| Display | Display | 7” TFT |
|
Resolution (pixels) |
800*480 | |
| Brightness | 300cd/m² | |
| Contrast ratio | 400:1 | |
| Backlight | LED | |
| Backlight time | 60,000 h | |
| Display color | 65536 true colors | |
| Touch type | 4-wire resistive panel | |
| Storage | ROM | 128MB |
| RAM | 64MB | |
| CPU | ARM9 core 400MHz | |
| Operating system | WINCE 5.0 | |

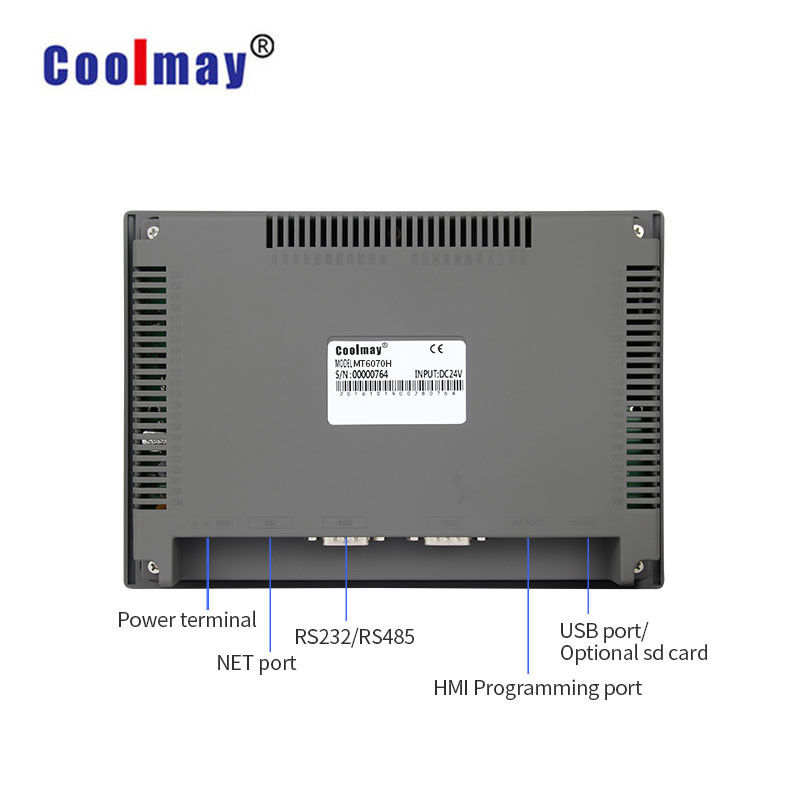

| Interface | USB port | USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.) |
| Download port | Yes (Type B male port cable for program download) | |
| Ethernet port | Optional | |
| COM port | 1 RS232 and 1 RS485 | |
| Protocol | Support MODBUS, free port and common PLC communication Protocol | |
| Audio | Optional | |
| Calendar | Yes | |
| Input Voltage | Default as DC12~24±10%V | |
| Consumption | 200mA*24V | |
| Protection Class | IP65 (front panel) | |
| Temperature | Ambient environment: 0～50℃ | Storage environment: -20～70℃ | |
| Humidity | 20%～90% RH | |
| Certification | CE | |
| Software | Coolmay HMI programming software | |
-
Provides vector galleries and supports self-built gallery
-
Resistive touch panel with high precision and reliability
-
Supports any-format static images and GIF animation
-
Supports all fonts in Windows
-
60,000 TFT true color display
-
Optional data storage function, you need to select U disk storage in the HMI software, and the hardware USB
-
interface requires an external USB drive (SD card storage is optional, and cannot coexist with U disk storage)
-
MT60 series support date import or export and program downloading by USB drive
-
Default RS232 and RS485 port, support multiple protocols
-
MT60 series supports vertical display
-
Network port, audio or CAN port is optional
-
Gray, gold, or silver panel is optional, black or white bottom shell is optional
-
Supports wall mounted, and can be used in home automation or industrial control
-
