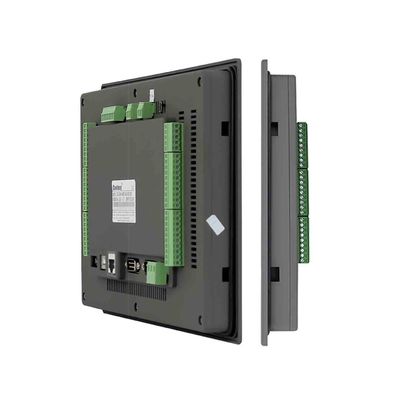

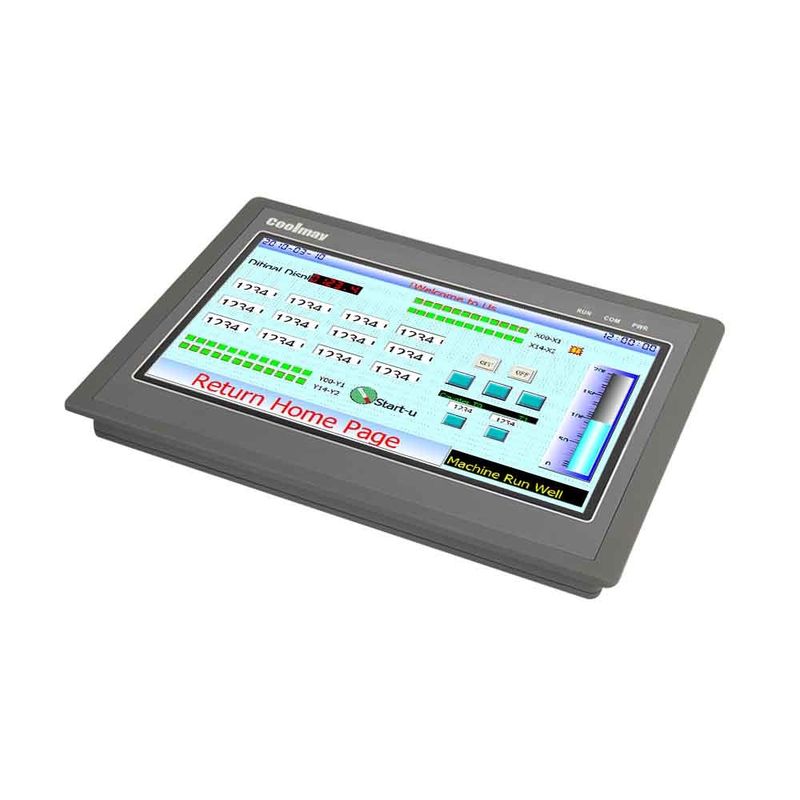

Ethernet Port 12DI 12DO Touch Screen PLC With Rechargeable Battery
| Brand Name: | Coolmay |
| Model Number: | EX3G-100HA-24MR-3AD1DA-2K1V-V-485P-WP |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000 pcs per month |
12DO Touch Screen PLC
,12DI touch Screen PLC
,12DO touch plc
Ethernet Port 12DI 12DO Touch Screen PLC With Rechargeable Battery
HMI PLC All In One With Ethernet Port 12DI/12DO CORTEX A8 720MHz-1GHz CPU Rechargeable Battery Adopted
Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.
The package will include
- 1 set of device EX3G-100HA-24MR-3AD1DA-2K1V-V-485P-WP and cables
- Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.
The device includes functions below
- 10 inch HMI+PLC all-in-one,
- 12DI/12DO, relay outputs,
- 3 analog inputs: 2 thermocouple K (Range: 0~1100°C), 1x 0-10V
- 1 analog output: 0-10V
- RS232, RS485 port on PLC
- Ethernet port on PLC
Parameter:
| Display | Dimension | 275*194*36mm |
| Resolution | 1024*600 pixels | |
| Type | 10.1” TFT | |
| Features | Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register | |
| Memory | RAM | 128MB |
| ROM | 128MB | |
| CPU | CORTEX A8 720MHz-1GHz | |
| I/O | DI/DO | 12DI/12DO or 20DI/18DO or 24DI/20DO or 30DI/30DO |
|
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact |
||
| DO type and load |
Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) MOS tube: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM; MR: 2A/point, 4A/4 points COM, 5A/12 points COM. |
|
| Analog I/O (optional) | Max 16AI/8AO | |
| AI type (optional) |
Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ -5V~5V/ -10V~10V/ 0~20mA/ 4~20mA/ mixed |
|
| AO type (optional) |
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2DA for 1 minus voltage) |
|
| High-speed function | High-speed counting | 6 channels single-phase 60KHz, or 2 channels AB (Z) phase 60KHz + 1 channel AB phase 10KHz |
| High-speed pulse |
8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
|
| Connection | HMI | 1 HMI download port,1 USB 2.0 port |
|
1 RS485 or 1RS232 port Ethernet port (can not coexist with PLC Ethernet port) |
||
| PLC | 1 Mini type B USB port, 1 RS232 port (Program port,also can be used as COM port) | |
| 1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port), CAN (2.0A/B), Ethernet port (can not coexist with HMI Ethernet port), WIFI (will occupy the default RS232) | ||
| Software | HMI | CoolMayHMI HMI programming software |
| PLC | Compatible with Mitsubishi GX Developer8.86 and GX WORKS 2 |
Advantage:
◆ Upper computer programming software compatible with Works 2/GX Developer8.86 (supports Ladder diagram and SFC language, does not support structured programming/labels).
◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing speed.
◆ Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program.
◆ Clock supported, rechargeable battery adopted.
◆ Default With 1 HMI Downloading port, 2 PLC programming ports: one MiniB USB port with faster downloading speed; one Rs232 programming port with 8 mouse hole sockets, and 1 USB port.
◆ Support programming port protocol/Modbus protocol/Rs protocol/BD board protocol,
PLC communication with each other and other devices is easily achieved.
◆ Support multiple types analog individually or mixed ones for analog output and input.
◆ Convenient for wiring, adopting 3.81mm pluggable terminals.
◆ Flexible, can be customized accordingly.
◆ Easy installation. DIN-Rail (35mm width) installation and fixed hole installation.Flexible, can be customized accordingly.
◆ 32K steps program capacity, 32k registers of hold on when power off, support interrupt,linear&circular interpolation,PID and self-tuning,high powerful.
◆ PLC Software is compatible to Mitsubishi, HMI use Coolmay programming software.
