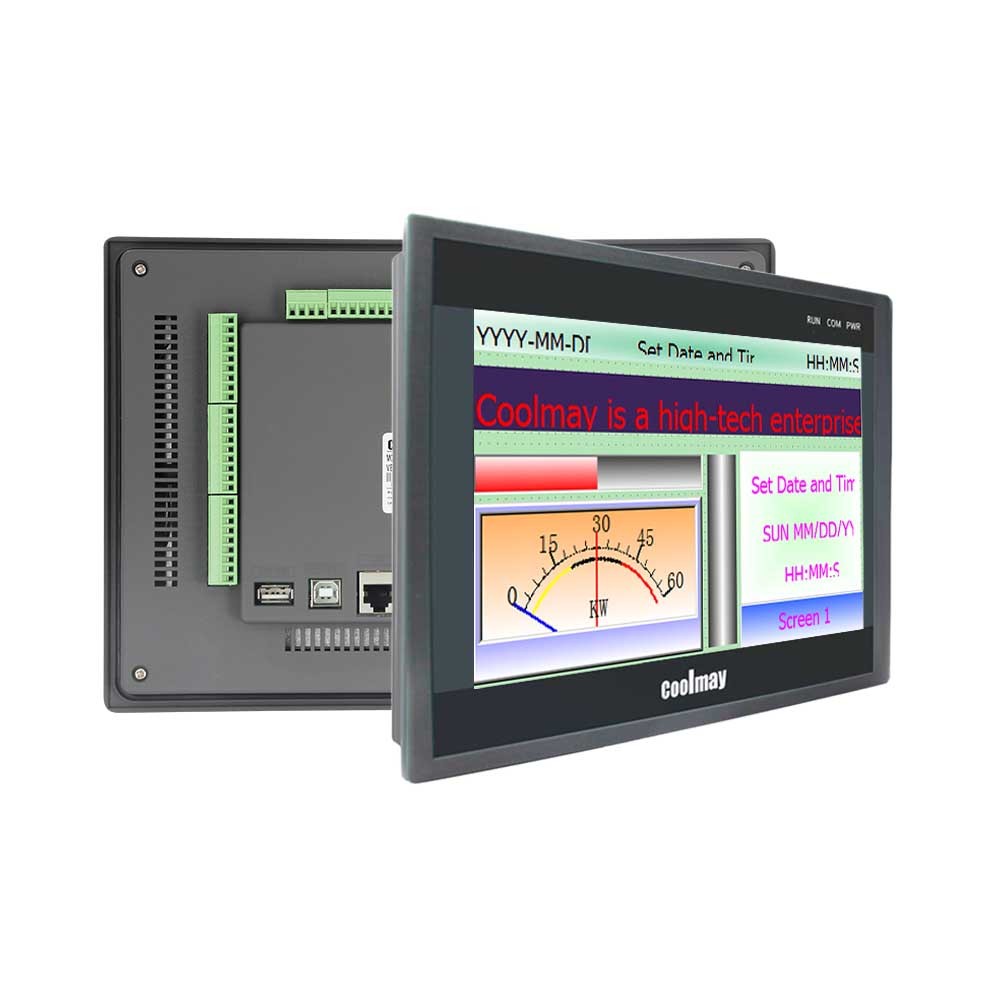

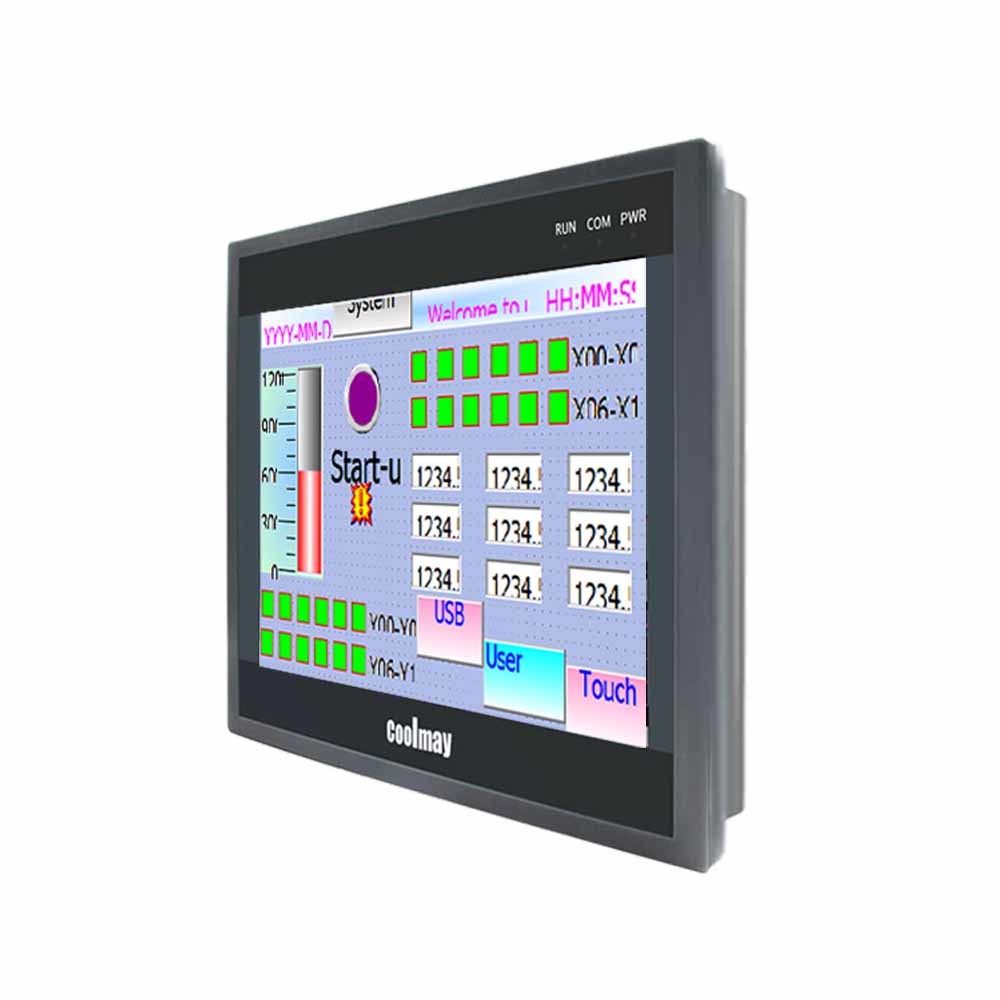

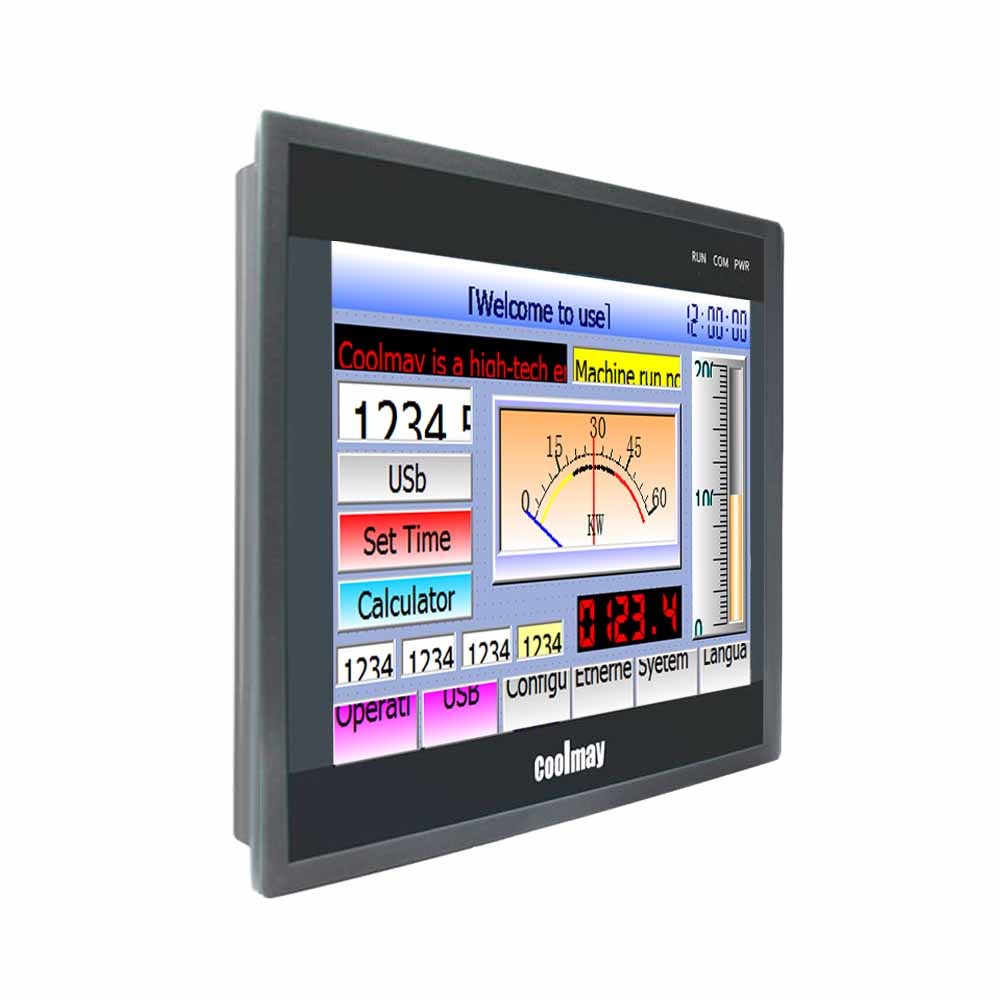

10Inch Touch Panel HMI PLC All In One 8AO Industrial 8 Channels
| Place of Origin | China |
|---|---|
| Brand Name | Coolmay |
| Certification | CE |
| Model Number | QM3G-100FH |
| Minimum Order Quantity | 1 unit |
| Price | Details Need To Be Negotiated |
| Packaging Details | Carton |
| Delivery Time | within 3 working days after payment confirmed |
| Payment Terms | T/T,Paypal, Western Union, Credit Card |
| Supply Ability | 1500 pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of HMI | 10 Inch | Digital Points | Max 30DI/30DO |
|---|---|---|---|
| Analog Points （Optional） | Max 16AI/8AO | High Speed Pulse | Support |
| High Speed Counting | Support | Software | Free |
| High Light | 10Inch HMI PLC All In One,8AO HMI PLC All In One,QM3G-100FH |
||
Product Description
10Inch Touch Panel HMI PLC All In One 8AO Industrial 8 Channels
10 Inch Industrial Touch Panel LCD Display HMI PLC All In One Original Brand Low Cost High Function
Paramaters of HMI Part:
size of HMI: 10 inch
cutout size: 275*194*36mm
Resoution:1024*600
RAM:128MB
ROM:128MB
CPU:CORTEXA8720MHz-1GHz
com ports:1*HMI download port, 1* USB 2.0 port
Software: mView
Paramters of PLC Part:
Digital I/O: Max 24DI/20DO(Max 18R)
I/O level: default NPN input and output, MR can be customized PNP input PNP output, MT can be customized PNP input and NPN output
DO type: transistor(MT) or relay(MR) or mixed(MRT)
Analog I/O(optional): max 16AI/8AO
AI(Optional):
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO(Optional):
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus voltage)
com port:1*mini USB,1*RS485,1*RS232
software: WORKS 2
We are committed to providing you with a variety of solutions (Communication Port, Analog, Temperature,Weighing, etc.)
| Digital relay output index | |
| Max current | 5A |
| Circuit power voltage | DC/AC 24V-220V |
| Circuit insulation | Relay mechanical insulation |
| On response time | Approx. 10ms |
| Mechanical life without load | 10 million times |
| Electric life with rated load | 300,000 times |
| Output level | Dry contact, COM connects positive or negative |
| Digital transistor(MOS) output index | |
| Max current | 500mA(MOS 2A) |
| Circuit power voltage | DC24V |
| Circuit insulation | Optocoupler insulation |
| Isolated voltage (power-terminal) | 1500VAC |
| On response time | High-speed output: 10μs, and others 0.5ms |
| High-speed output frequency | 8 channels H/KH/HA Y0-Y3 100KHz, Y4-Y7 10KHz. Acceleration and deceleration are independent.The total high-speedcounting and pulse can not exceed 480KHz. |
| Output level | Low level NPN, COM connects negative |
| Analog input indexes | |
| Input signal | PT100/PT1000/thermocouple/NTC/0-10V/0-5V/-10V~10V/-5V~5V/0-20mA/4-20mA/ customizations. |
| Response time | 1 scanning cycle |
| Analog input | 0-16 channels |
| Precision | 12 bits |
| Analog output indexes | |
| Output signal | 0-5V/0-10V/0-20mA/ customizations |
| Analog output indexes | 0-8 channels |
| Precision | 12 bits |
Detail COM Ports:
FAQ
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect
Purchase Note
- It is Suggested to use WORKS 2 For CX3G PLC, which it is better compatible.
- ODM and OEM are support if order can be reach request quantity.
- More details you can offer as DI/DO,AI/AO, high speed requirements, com ports...... ,it will be more fast to decide final model.
- If you need special cable, please advise.
