Big Size 6.5A 150W PLC Switch Mode Power Supply 89% Efficiency
| Brand Name: | Coolmay |
| Model Number: | CM15024 |
| MOQ: | 1 Unit |
| Price: | Details Need To Be Negotiated |
| Payment Terms: | TT,Paypal, Western Union, Credit Card |
| Supply Ability: | 15000 Units Per Week |
Detail Information
Place of Origin:
China
Dimension:
159*97*38mm
Input Voltage:
88～264VAC Or 125~373VDC
Output Voltage:
DC24V
Output Current:
6.5A
No-load Consumption:
＜0.5W
Defensive Function:
Short Circuit/ Over Voltage/ Overload Protection
Packaging Details:
Carton
Supply Ability:
15000 Units Per Week
Highlight:
150W PLC Switch Mode Power Supply
,6.5A PLC Switch Mode Power Supply
,150W PLC switch power supply
Product Description
Big Size 6.5A 150W PLC Switch Mode Power Supply 89% Efficiency
Big Size 150W 6.5A DC24V PLC Power Supply Switch Power Adpater
Features:
- Advanced PWM pulse width modulation technology.
- Imported switching power s upply dedicated driver chip.
- Soft start current, effectively reducing transient voltage surges.
- High temperature electrolytic capacitors are used to ensure system reliability.
- 120% full load aging test with strong output.
- Built-in EMI and filter. Ripple and noise are minimal.
- Short circuit protection, overload protection, over voltage protection and other functions.
- Natural heat dissipation, stable performance and high reliability.
- Average trouble-free working time up to 100,000 hours.
Parameters:
| Article | CX6024-12-5 | CX2024 | CM6024 | CM15024 |
| Dimension | 85*90*36mm | 65*90*36mm | 90*32*60mm | 159*97*38mm |
| Connection mode | 7.62 Barrier terminal | 7.62 Barrier terminal | 5P-7.62 Barrier terminal | 7P-9.5Barrier term |
| Input voltage | 1A | 0.8A | 2.5A | 6.5A |
| Output efficiency | 86% | 85% | 86% | 89% |
| Installation | Standard guide rail's installation, can be installed on NS357.5or NS35 guide slot | screw fixation, vertically or parallel installation | ||
| Impulse current | 30A/230VAC | 60A/230VAC | ||
| Input frequency | 47~63Hz | |||
| Input voltage | 88~264V AC/125~373V DC (Withstand 300 VAC surge input 5S, no damage) | |||
| Output voltage | DC24V/DC12V/DC5V | DC24B | ||
| Output accuracy | ±1% | |||
| No-load consumption | <0.5w | |||
| Life time | 100000 hours at room temperature 25 ° C | |||
| Overload protection | Rated output 110%~180%, hiccup protection mode, automatic recovery after load abnormal condition removal | |||
| Overvoltage protection | 27.6～32.4V | |||
| Short circuit protection | Automatic protection when the output is short-circuited (LED off), automatically restored after the short-circuit is released | |||
| Insulation withstand voltage | I/P-O/P: 3KVA, I/P-FG: 1.5KVA, O/P-FG: 0.5KVA,1 minute | |||
| Working environment | working environment-20～+70° C / working humidity20～90%RH | |||
| Storage environmen | No condensation, storage temperature -40 ~ +85 ° C / storage humidity 10 ~ 95% RH | |||

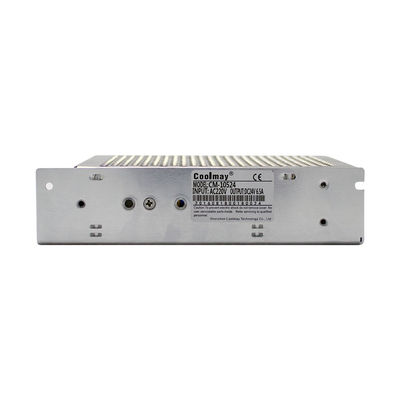

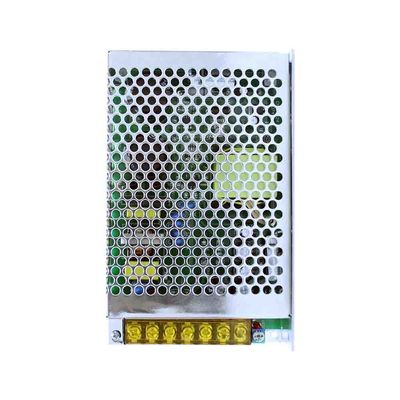

Detail Pictures:
Attention:
- Please confirm the input voltage range (88~264V AC/125~373V Dc) of the product andre-energize after correct wiring to avoid damage.
- When installing this product, be sure to tighten the screws or clamp the guide rails toavoid falling off.
- Avoid wiring, plugging and unplugging the cable in the live state, otherwise it may cause electric shock or circuit damage; when the product emits odor or abnormal sound, please disconnect the power immediately; do not make metal chips and wire heads when processing and wiring the screw holes. Into the ventilation holes of the power supply, this may cause product failure and mis-operation.
- The grounding terminal on this product must be properly grounded to improve the anti-interference ability.
FAQ:
1) Are you a manufacturer or trade company?
We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
