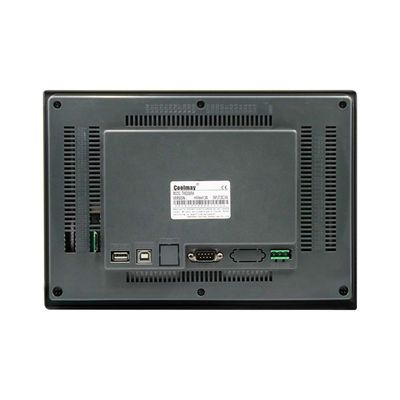

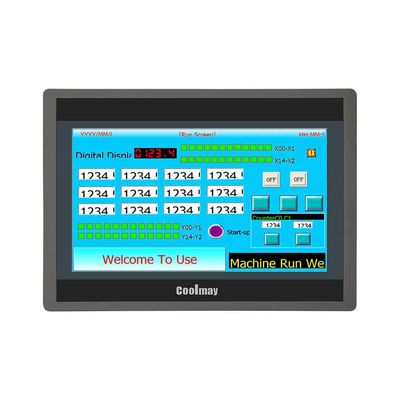

10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller

Place of Origin China
Brand Name Coolmay
Certification CE
Model Number TK6100FH
Minimum Order Quantity 1
Price usd94-usd1138 per piece
Packaging Details box 36.5*26*10cm
Delivery Time 5-7 working days
Payment Terms T/T, Western Union
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product HMI Display Size 10 Inch
Cutout Size 262*180mm Resolution 1024*600
ROM NOR Flash 16MB RAM 64MB
CPU 32bit CPU 408MHz Protocol Support MODBUS, Free Port And Common PLC Communication Protocol
High Light

MODBUS HMI Control Panel

,

1024X600 HMI Control Panel

,

64MB RAM HMI Touch Screen

Leave a Message
Product Description

10 inch HD 1024X600 Pixels HMI Control Panel for plc vfd controller monitoring



Model:TK6100FH

Protection class: IP65, Waterproof

Com Port: RS232, RS485

Protocol: Support MODBUS, free port and common PLC communication Protocol



Downloading Port: USB Type C

Programming Software: mView



10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller 0

TK series HMI applied Coolmay software “mView”. “mView” is a set of stable and reliable human machine interface programming software for industrial occasions. Independent and original system design, running speed increased by 200%, memory usage reduced by 50%.
It supports many communication protocols and can communicate with more than 200 PLC and controllers on the market.



Com Port Definition :

10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller 1



Installation :

10 Inch MODBUS 1024X600 HMI Control Panel 64MB RAM For Plc Vfd Controller 2



More Size In stock!





Specification TK6037FH TK6043FH TK6050FH TK6070FH TK6100FH
Dimension 88x88x25mm 134x102x36mm 151x96x36mm 200x146x36mm 275*194*36mm
Cutout Size 72x72mm 120x94mm 143x86mm 192x138mm 262x180mm
Display 3.5 inch 4.3 inch 5 inch 7 inch 10 inch
Display size 73x56mm 97x56mm 108x65mm 154x87mm 222x125mm
Resolution 320*240 480*272 800*480 800*480 1024*600
Touch type
4-wire resistive panel
RAM 64MB
CPU 32bit CPU 408MHz
Operating System No operating system
USB Type C, for downloading program
COM port 1 RS232 and 1 RS485
Optional NULL 1 WIFI (occupy default RS485 port)
Protocol Support MODBUS, free port and common PLC communication Protocol
Calendar Yes
Input Voltage 12-24VDC±10%<150mA @ 24VDC
Protection Class IP65 (front panel)
Temperature Ambient environment: 0~50℃ | Storage environment: -20~70℃
Humidity 20%~90% RH
Software mView Coolmay programming software
